Hot Sale Micro Six Axis Force Sensor for Robot

Product Description

Hot Sale Micro Six Axis Force Sensor for Robot Product Description

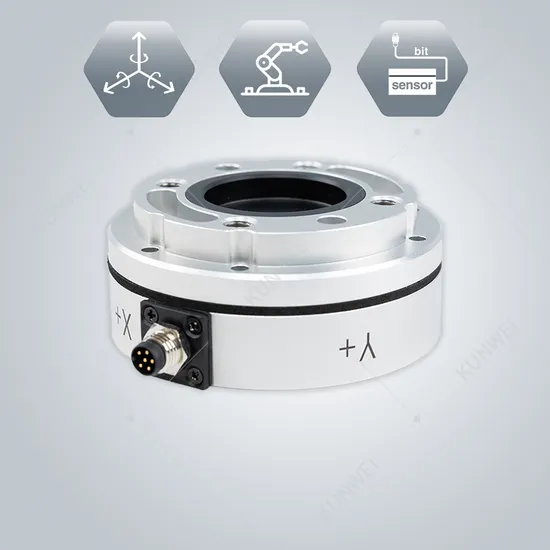

KWR75 series transducer is embedded in highly precision intelligent circuits, it is equipped with adapter flange, the customer could install flexibly according to their own needs. The series is available in several models, measuring range from 30N to 400N. The product uses digital signal ( serial port ) output by default, and can be embedded in analog signal data acquisition module to support analog signal ( such as 0-10V, 4-20mA, etc. ) receiving equipment ; and a serial port server device can also be used to support Ethernet-related equipment.

Parameter	Unit	Model
		KWR75A	KWR75B	KWR75C	KWR75D	KWR75E	KWR75F
Fx,Fy	N	50	200	350	500	30	100
Fz	N	50	200	500	700	30	100
Mx,My	Nm	2	8	12	18	1.5	4
Mz	Nm	2	8	12	18	1.5	4
Diameter	mm	75
Height	mm	31.5	31.5	33.5	33.5	31.5	31.5
Material		Aluminum Alloy
Surface Treatment		Anodization
Overloading	%FS	300
Resolution	%FS	0.03
Repeatability	%FS	0.1
Accuracy	%FS	0.5
Weight	Kg	0.26	0.28	0.32	0.36	0.26	0.28
Protection Level		IP64
Working Temperature	ºC	0-80
Sampling Frequency	Hz	1000
Supply Voltage	VDC	9-24
Communication Protocol		RS422/RS485/Modbus/CAN/Industrial Ethernet/USB/etc.

How to choose a proper sensor?

Items
Measuring Items	F&T of 3 Directions	F or T of 3 Directions	F or T of 1 Direction
No. of Outputs	6	3	1
Point of F	Not Fixed	Fixed	Fixed
Direction of F	Not Fixed	Not Fixed	Fixed
Measuring Accuracy	High	High or Medium	High or Medium
Budget	High	Medium	Low
Recommendation	6 Axis F&T Sensor	3 Axis F/T Sensor	1 Axis F/T Sensor

Note:F stands for force,T stands for torque.

FAQ

1.How to place an order ?
Just provide us your application&requirement and we`ll help you confirm all the details.
2.What is lead time?
3-5 working days if we have in stock;7-30 working days for bulk order.
3. What is the MOQ?
1 pc for testing is available for all types.
4.Can you provide customized product?
Of course and we can provide whole set solutions for you.
5.What is after-sale service?
Our R&D team will solve all your problems all the way since you get our product.
