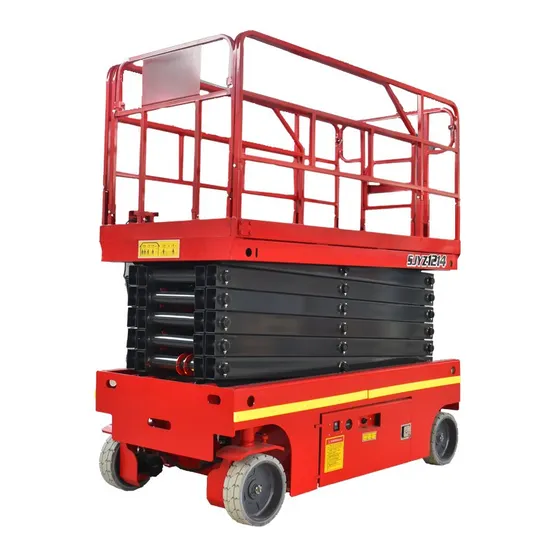

Hydraulic Scissor Lift Platform Table 8m 12m 10m Electric Scissor Lift Truck

US$2,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Lift Mechanism

Scissor Lift

Carrying Capacity

Weight Level

Moves

Moving

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof

Power Source with

24V DC or 48V

Travel Speed(Raised)

0.5km/H

Table Size

2270*1120mm

Battery

6V/230ah

Lift Drive / Actuation

Electric Motor

Load Capacity

320kg-450kg

Working Height

6-12m

Platform Size

2270*1120mm

Extend Platform

900mm

Weight

1460kg-3600kg

Overall Size

2480*1390*(2200-2635)mm

Transport Package

Wooden Box or Container

Trademark

YU YING

Origin

Hebei, China

Production Capacity

8000 Piece/Pieces Per Month

Product Description

Product Description
Advantage:
1. Lifting height from 6m to 16m 2.Electric model,Wheel or track model.

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Capacity of Extendable Platform	113kg	113kg	113kg	113kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Overall Height(guard rail open)	1745mm	2400mm	2530mm	2670mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Extendable Platform Length	900mm	900mm	900mm	900mm
Min Turning Radius	0	0m	0m	0m
Gorund Clearance	150mm	150mm	150mm	150mm
Lifting Motor	48v/4kw	48v/4kw	48v/4kw	48v/4kw
Travel Motor	2*48v/4kw	2*48v/4kw	2*48v/4kw	2*48v/4kw
Drive Speed	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Lifting Speed	5s/m	5s/m	5s/m	5s/m
Battery Charger	48v/25A	48v/25A	48v/25A	48v/25A
Net Weight	2400kg	2550kg	2840kg	3000kg

China Daxlifter Rough Terrain Crawler Scissor Lift special design for bad working place, the crawler design will offer a good help for the lift to across some rough obstacle.For example, grassland, some rough construction ground etc.. Crawler Type Scissor Lift adopts a crawler design to ensure a good possibility of the scissor lift. If you want to find a good quality manufacturer, please send an inquiry to us. We will provide you with a suitable price
