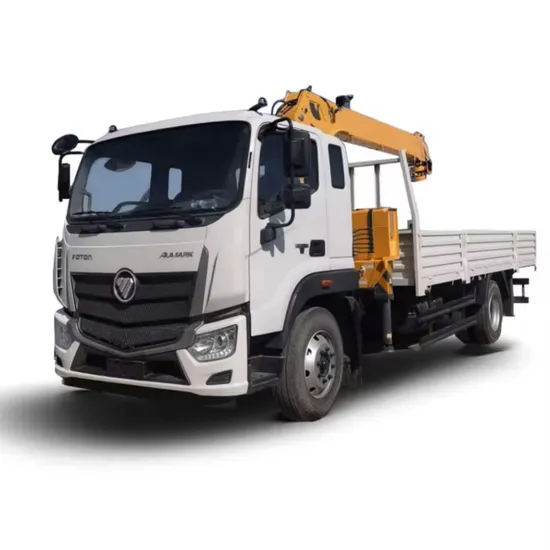

Truck mounted crane is a hydraulic lifting and telescopic system that enables lifting, rotation, and hoisting, typically installed on trucks. In short, a crane is one of the multifunctional specialized vehicles that integrates lifting and transportation. It usually consists of a truck chassis, cargo hold, power take-off, and crane.
| Cabin | Driving type 4x2 LHD/RHD |
| 1880 / 2080 Cabin, bed, AC, wind deflector, power window, central lock is optional |
| Overall Dimensions | 8995×2496×2980 mm |
| Wheel Base | 5200 mm |
| GVW | 25000kg |
| Front Axle | 1090 Front Axle |
| Rear Axle | 1118 casting axle(ratio:6.33),load bearing 8 ton |
| Engine | Brand | YUCHAI |
| Model | YC4E160-33 |
| Type | 4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Displacement | 4.26L |
| Bore x Stroke | 110x112 mm |
| Horse Power (HP) | 160 |
| Emission standard | Euro II / other standard engine is optional |
| Max Speed | 95 km/h |
| Tire | 9.00-20, 9.00R20 |
| Clutch | Φ395 push-type diaphragm-spring clutch |
| Transmission | DC6J48TC over drive full synchronizer transmission ,6 forward and 1 reverse |
| Steering | A01 hydraulic steering with power assistance |
| Oil Tank | 200L |
| Cargo Dimensions | 6750x2400x550 mm |
| Brake System | Service brake:dual circuit compressed air brake |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Electrics | Operating voltage:24V,negative grounded |
| Batteries:2x12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light |
