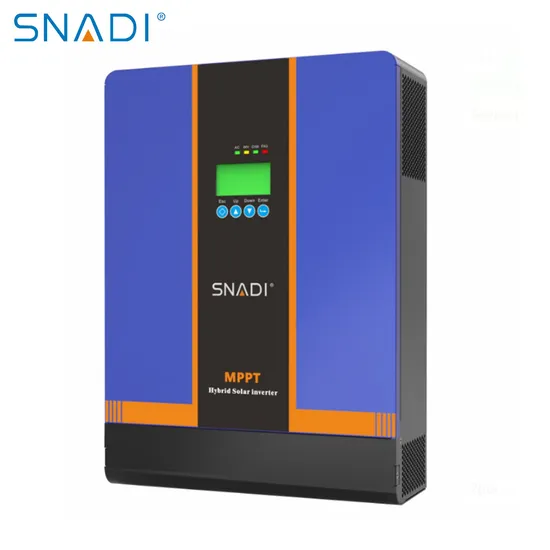

High Frequency off-Grid 3000W 5000W 500V Hybrid Solar Inverter with MPPT Controller

Product Description

Product Description
Main Features
+ Excellent performance because of an MCU intelligent control technology;
+ A wide range of applicable loads because of pure sine wave AC output;
+ Convenient and practical 5VDC-USB output port and 12VDC output port;
+ Solar array and battery common-anode system input;
+ Charge by mains supply for flexible configuration (optional function);
+ Overcharge protection and overdischarge protection for a longer battery life;
+ Digital meter and LEDs for visualization of operation status of the equipment;
+ Overall automatic protection and alarms including AC output overload protection, short circuit protection, etc.
Product Description:

Complete all sets 3KW/5KW Solar energy module battery back up
Model:NKH-		NKH-3.5KVA	NKH-5.5KVA	NKH-10KVA	NKH-12KVA
Rated Power		3KW	5KW	8KW	10KW
Input	Voltage	208VAC/220VAC/230VAC/240VAC
	Selectable Voltage Range	170-280VAC(For Personal Computers)
		90-280VAC(For Home Appliances)
	Frequency Range	50Hz/60Hz(Auto sensing)
Output	AC Voltage Regulation (Batt .Mode)
	Surge Power	6KW	10KW	16KW	20KW
	Efficiency (Peak)PV to INV	97%
	Efficiency (Peak)Battery to INV	94%
	Transfer Time	10 ms
	Overlord Capacity	1min@102%-110% Load,10s@110%-130% Load, 3s@130%-150% Load 02s@150% Load
Battery & AC Chaarge	Battery Voltage	24VDC	48VDC
	Floating Charge Voltage	27VDC	54VDC
	Overcharge Protection	32VDC	64VDC
	Maximum Charge Current	60A	80A
PV Charge	Maximum PV Array Power	1500W	5500W	11000W
	MPPT Range Operating Voltage	30-115VDC	120-430VDC
	Maximum PV Array Open Circuit Voltage	145VDC	450VDC
	Maximum Charge Current	60A	80A	160A
	Maximum Efficiency	99%
AC+PV Charge	Maximum Charge Current	120A	80A	160A
	Dimension D*W*H(mm)	439*320*128		640*490*152
Physical	Net Weight(kg)	8	9.2	20
	Communication interface	USB/RS232/GPRS/WIFI
	Humidity	5% to 95% Relative Humidity(Non-condensing)
Opera Ting Environmen	Operating Temperature	0- 55
	Storage Temperature	-15ºC-60
Note: Our company has the right of changing this user manual without any information

TECHNICAL INDEXE
FAQ Q1: What is the warranty of your product?
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.

Q3: What is your delivery time?
A3: Within 10 day after receive advanced payment.

Q4: What minimum order do you require?
A4: 1 piece.

Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
Contact us Please contact us for more detail information without hesitate.
Warmly welcome to to vist our factory in Foshan city of China.

---
