4 Rows Potato Ridge Former/Soil Cultivation/Ridging Hiller

Product Description

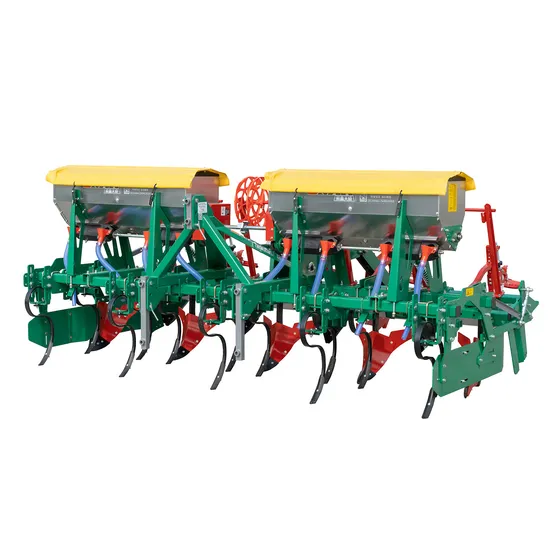

3ZMP-360 Potato Ridge Former is an agricultural machinery used in potato cultivating soil, which can complete the operation of loose soil, weeding, ridge construction and top dressing, and both to improve the temperature and soil moisture.
Structural features:

1,The machine frame adopts double beam rectangular frame structure, strong strength, good rigidity, no deformation;

2,This machine uses the S-curved elastic shovel, which enhances the elasticity of the shovel so that the hard objects (such as stones) in the soil can be destroyed to the lowest of the
whole machine.

3,The machine is cultivated by the soil of the soil into a trapezoid, by adjusting the soil and the ground angle can be adjusted ridge height and ridge width;

Applicable scope

The potato cultivated cultivated soil topdressing machine for 90 cm ridge distance, the ridge height between 25 to 30 cm, and the ridge around the length of about 110 cm of potato cultivation ridge ridge operations. Its operation requires soil moisture content of not more than 25%, the proposed operating speed of 4 to 6 km per hour.

Performance Parameter:

No.	Item	Unit	Parameter Index
1	Structural style	/	Mounted
2	Overall dimension	mm	3270×3920×1650
3	Machine weight	kg	1020
4	Tractor engine power	kW	92-132.3
5	Applicable row(ridge) spacing	mm	900
6	Operation width	mm	3600
9	Working ridge number	/	4
10	Small elastic tooth deep	cm	5-10
11	Large elastic tooth deep	cm	8-20

---
