product feature:

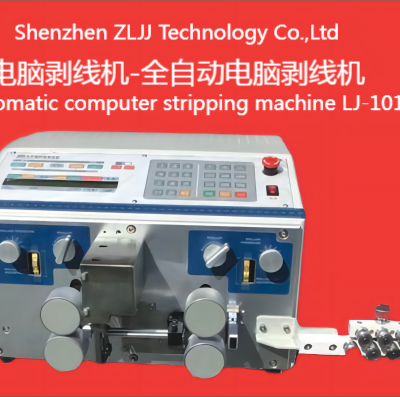

Automatic computer stripping machine, electrical collection. Microcomputer for the integration of automatic computer stripping machine is a kind of advanced technology introduced from Japan, Taiwan and other fully automated CNC equipment. Widely used in electronics industry, automobile parts industry, electrical appliances, motors, lamps, toys and other products of wire harness processing. Suitable for stripping wire PVC, Teflon, silicone, glass fiber and so on.
Automatic computer stripping machine, using touch LCD screen human dialogue mode, with beautiful appearance, simple operation, easy maintenance, stable performance, high speed, high accuracy. The length of the wire can be arbitrarily set and modified according to customer requirements. It can strip a variety of wires from the thinest to 28# to the thickest to 10#. The special device also has the function of front cutting of the line, the sheath line, the power line and the sleeve, and can be installed with the active pay-off machine, the takeup machine and the printer.
Product Parameter:
Type number:LJ-1019
Working power supply:AC220V/110V 50/60HZ
Work rate:450W
Can be processed wire:PVC/ Teflon/silicone wire/glass fiber wire, etc
Cut-off range:1-10000mm
Stripping range:0.2-6 was
Cutting length:0.2 9999.99 mm
Cut core section:(AWG28#-AWG10#) 0.08-6mm2
Stripping velocity:L=100MM,5000PCS/H
Maximum diameter of conduit:8mm
Gas source:0.2-0.4 mpa
Overall dimension:430 * 390 * 280
weight:34kg
>>
