Iron Roofing Sheet Double Layer Glazed Tile Roll Foming Machine Hot Sale in China

US$9,500.00-11,500.00 1 Set (MOQ)

Basic Info.

Model NO.
Double Layer
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Wall
Transmission Method
Machinery
Suitable Material
Colored or Galvanized Steel Coil, Hrb60 or Equival
Thickness Range
0.3-0.8 mm
Hydraulic System Pressure
12 MPa
Hydraulic Station Motor Power
4 Kw
Main Motor Power
4~5.5kw
Coil Width Range
914, 1000, 1220 or 1250 mm.(According to Your Actu
Electric Power
380V, 50 Hz, 3 Phase(or According to Your Need)
Cutting
Automatically Stop and Cutting When It Comes to Th
Roller Material
45# Steel with Chrome Treatment
Transport Package
Waterproof Package
Specification
6500x1250x1450mm
Trademark
FMS
Origin
China
HS Code
84552210
Production Capacity
30sts/ Month

Packaging & Delivery

Package Size
650.00cm * 125.00cm * 145.00cm
Package Gross Weight
7000.000kg

Product Description

Iron Roofing Sheet Double Layer Glazed Tile Roll Foming Machine

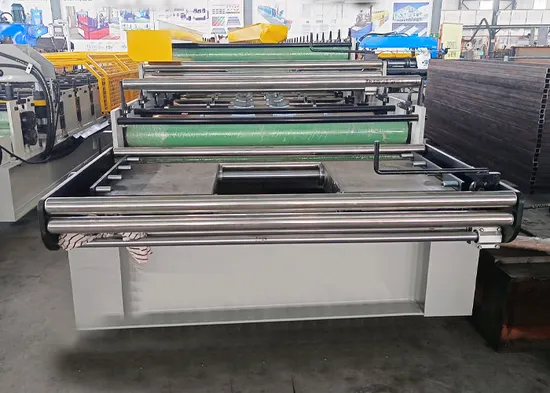

1.Machine picture
Technique parameters
(1) Processing material aluzinc/galvanized steel/colored steel coil
(2) Material thickness 0.25-0.75mm
(3) Effective width according to customer's request
(4) Feeding width according to customer's request
(5) Main motor power 4 kw
(6) Pump power 4 kw
(7) Shaft diameter 75mm
(8) Forming steps up level 13 steps wall profile; down level 13 steps for roof
(9) Roller material 45# forged steel, with hard chrome plating
(10) Main frame 300H steel
(11) Medium plate thickness 16mm
(12) Control system PLC computer control with inverter

(13) Power supply: 380V, 3 Phase, 60Hz or as requirement
(14) Overal sized: 7500mm*1500mm*1500mm Advantage:
(1)Forming thickness 0.25-0.75mm
(2)Forming steps Uper layer:11 roll stations.75mm shaft,
down layer 13 roll stations
(3)Hydraulic mould cutting
(4)Export this kind double layer machine to many countries.
(5)Delta PLC fully automatic control system
(6)CE,BV,TUV,CO and other requirement available
