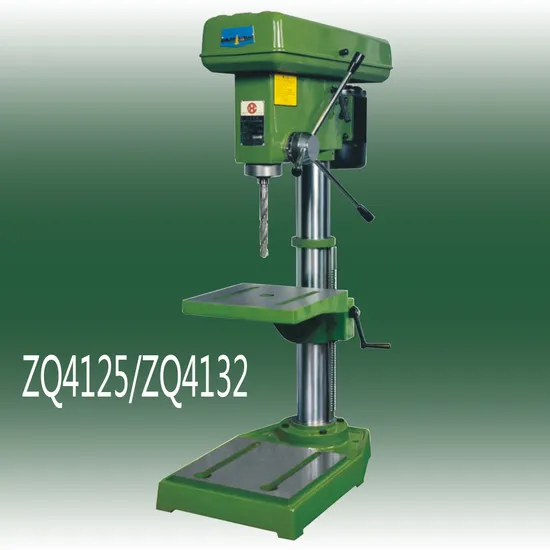

| Model | ZHX-13 | ZQ4113II/ZQ4116II | ZQ4113/ZQ4113B | ZQ4116/ZQ4119 | ZQ4125/ZQ4132 | ZQD4125/ZQD4132 |
| Max.drilling capacity | 13mm | 13mm/16mm | 13mm | 16/19mm | 25/31.5mm | 25/31.5mm |
| Diameter of column | 48mm | 73mm | 70mm | 70mm | 85mm | 85mm |
| Spindle travel | 50mm | 85mm | 85mm | 85mm | 110mm | 110mm |
| Distance spindle axis to column surface | 103mm | 165mm | 180mm | 180mm | 200mm | 200mm |
| Max.distance spindle nose to worktable | 220mm | 328mm/390mm | 318mm | MT.2:432mm(B18:400mm) | 485mm | 490mm |
| Max.distance spindle nose to base | 300mm | 488mm/562mm | 475mm | MT.2:592mm(B18:560mm) | 670mm | 1240mm |
| Spindle taper | B16 | B16/MT.2 | B16 | MT.2 or B18 | MT.3 | MT.3 |
| Spindle speeds range | 515-2580rpm | 420-2800rpm/210-2900rpm | 450-2650rpm | 400-2420or270-2880rpm | 200-2260rpm/150-2270rpm | 200-2260rpm/150-2270rpm |
| Spindle speeds | 5 | 5/12 | | 5 or 12 | 9/12 | 9/12 |
| Dimension of worktable surface | 165x162mm | 230x230mm/250mm | 240x240mm/300mm | 240x240or 300mm | 280x280 or 360mm | 280x280or 360mm |
| Dimension of base worktable surface | 140x178mm | 210x210mm | 220x220mm | 220x220mm | 300x300mm | 300x300mm |
| Overall height | 581mm | 825mm/890mm | 858mm | 956mm | 1109mm | 1680mm |
| Motor | (1 phase)150or 180(3 phase) | 250W(1 phase)or370W(3 phase)/370W | 370W | 370W/550W | 550(1 phase)or750(3 phase)W | 550(1 phase)or750(3 phase)W |
| G.W/N.W. | 23/21kg | 43/40kg/47/44kg | 62/59.5kg(ZQ4113B) | 62/59kg | 110/107.5kg | 125/120kg |
| 60/55kg(ZQ4113) |
| Ship measurement | 47*33.5x24.5cm | 80x46x23cm | 92x52x28cm | 92x52x28cm | 110x77x34cm | 110x77x34cm |
