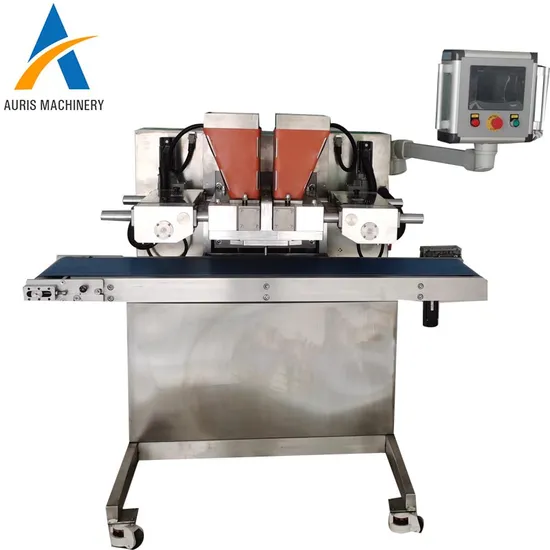

Industrial Snack Machines Two Color Center Filling Hot Chocolate Dispenser Depositor Chocolate Bar Making Forming Machine

Product Description

Product Description

Industrial snack machines Two Color center filling Hot Chocolate Dispenser depositor Chocolate Bar Making Forming Machine
Introduction:
The automatic Nuts chocolate depositor is for chocolate making, it can produce single color, two colors, chocolate filling,filled with nuts,grain etc.
It is an advanced and compact moulding solution for chocolate production. The plant can produce the compound chocolate or pure chocolate products; also can make the central-filled products and two color (up/down or left/right) products base on different manifold plate.
Feature:
1. Machine is made of SUS304,Includes electrical panel,controlled by PLC and touch
screen,servo-motors,cylinders,and the going-tracing device.
2. Chocolate molds standard size is 275x175*30mm , or other size as per design.
3. Chocolate depositing any quantitative scope of regulation weight as per the mould design.
4. One shot technology with standard 12-20 molds per min, any combination or adjustment of
the holes can be made to cast.
5. Heat cycle insulation system to set the temperature control automatically.
6. Full automatic processing with less labor required and space occupy.
Product Parameters

Capacity	12-20moulds
Vibration frequency	2940r/min
Vibration power	0.3kw
Heating power	3.0kw
Temperature range	35-45ºC
Heating temperature	55-60ºC
Size of mould	275*175mm or customize
Electronic parts	Siemens or Omron
