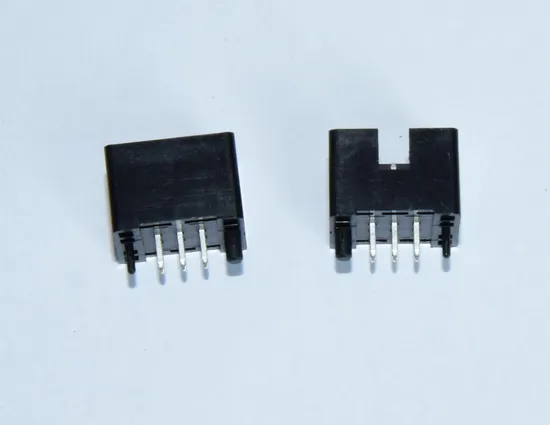

Connector Terminal Socket DIP Type 2*3 Pin Header

Product Description

Product description:

Product name	Socket DIP type 2*3 PIN header
Pin Count	row 2*3p
Plating	tin

1. Basic Overview
The Socket DIP Type 2*3 PIN Header is a dual in-line package (DIP) connector featuring 2 rows of 3 pins each, totaling 6 pins. This type of connector is widely used in electronic circuit boards (PCBs) for connecting various components.
2. Pin Configuration
Pin Arrangement: Double-row inline with 3 pins per row, providing a total of 6 pins for electrical connection. Pin Pitch: Typically 2.54mm (0.1 inch), a standard pitch for DIP connectors, facilitating easy installation and compatibility with standard PCB footprints. 3. Materials & Construction
Pin Material: Made from high-conductivity material such as copper alloy, often plated with gold, nickel, or other metals for improved conductivity, corrosion resistance, and durability. 4. Electrical Performance
Current Carrying Capacity: The pins are designed to carry a certain amount of current, which varies based on the material and plating. Always refer to the product specifications for accurate ratings. Voltage Rating: The connector and its pins are engineered to withstand a specified voltage range, ensuring safe and reliable operation within electronic circuits. 5. Application Areas
The Socket DIP Type 2*3 PIN Header is ideal for various electronic applications, including but not limited to computers, communication devices, consumer electronics, and industrial automation systems. It serves as a crucial interface for signal transmission and power distribution between PCB components. 6. Product Features
Easy Installation & Removal: DIP connectors are known for their straightforward installation and removal processes, simplifying maintenance and replacement tasks. High Reliability: Designed and tested to meet strict quality standards, these connectors offer reliable performance in diverse operating environments. Standardized Design: Adhering to standard DIP pin pitch and footprint dimensions, the connector ensures compatibility with a wide range of PCBs and electronic components.

---
