Automatic Cocoa Powder Grinding Machine Cocoa Pulverizer Cocoa Mill Grinder Powder Making Machine

Product Details

Product Description

Product Description

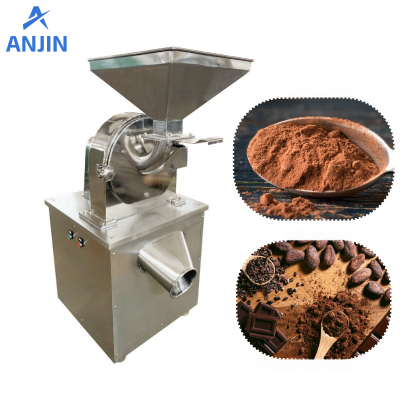

Automatic Cocoa Powder Grinding Machine Cocoa Pulverizer Cocoa Mill Grinder Powder Making Machine
Application of Cocoa powder grinding machine:
Cocoa powder grinding machines have wide applications and are widely used in the pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry, and so on. Using the relative motion between movable and fixed teeth disc, the raw materials can be crushed by undertaking comprehensive actions such as impacted by teeth,f riction, impacted between raw materials, and finally, the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is
determined by changing the screen mesh with different mesh numbers. (The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Features of Cocoa powder milling machine:
1. Hopper: The input hopper has a square shape and round shape, and can be customized based on the client’s request.
2. Locking: Effectively locking the cover to prevent powder leaking while the machine grinds the materials inside.
3. Rotary Disk: The relative movement of the rotating toothed disc and the fixed toothed disc, crushing the material.
4 . Final product: The fineness of the product can be changed by replacing different fineness screens.
Parameter Data:

Model	AJ-PG20C	AJ-PG30C	AJ-PG40C	AJ-PG50C	AJ-PG60C
Capacity(kg/h)	50-100	50-200	100-400	200-500	200-800
Crushed powder fineness(mesh)	20-120	20-120	20-120	20-120	20-120
Cutter diameter(mm)	200	300	350	500	550
Host power(kw)	4	5.5	11	15	18.5
Cleaning motor power(kw)	0.55	0.75	1.1	1.5	2.2
Dimension(mm)	1000*500*1200	1200*700*1650	1350*900*1800	1400*900*1950	1600*1100*2100
Weight(kg)	220	300	550	670	750

Notice:
1, The technical parameters are for reference only.
2, The product quotation is for reference only, based on the actual purchased model and configuration.
3, For more information, please call or consult our sales manager.
