Rule 20% Fiberglass Flame Resistance Bulk Molding Compound BMC for Electric Switch

Product Description

Product Description

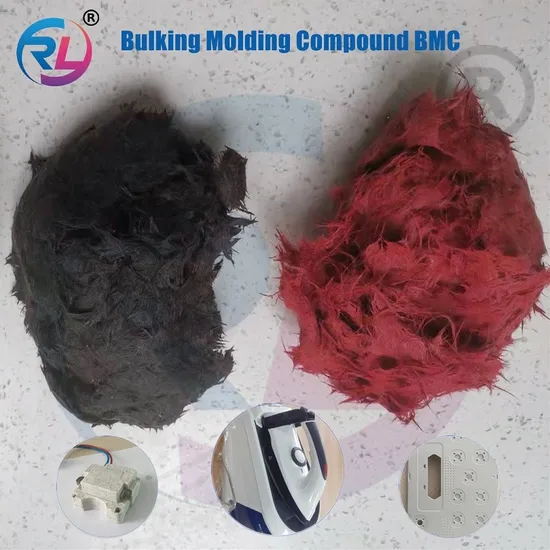

BMC(bulk molding compound) Bulk molding compound (BMC compositions are complex mixtures of resins, various ingredients(fillers,catalysts, thickeners ,etc.) fiberglass chopped strand, all of which influence important property and processing characteristics.
Product Parameters

Property	Physical and Mechanical Properties
	Impact Strength (J/m)	Flexural Strength(Mpa)	Flexural Modulus(Gpa)	Tensile Strength(Mpa)	Compressive Strength(Mpa)	Water Absorption(%)	Specific Gravity(g/cm3)	Shrinkage(%)	Hardness(Barcol)
	ASTM D256	ASTM D790	ASTM D790	ASTM D638	ASTM D695	ASTM D570	ASTM D792	ASTM D955	ASTM D2583
RM120-20	450	130	10	50	150	0.12	1.8	0.2	45-55
RE120-28	700	130	10	60	170	0.15	1.75	0.2	45-55
RE300-20	420	130	10	55	150	0.15	1.85	0.2	40-55
RE330-20	300	105	11	25	150	0.12	1.85	0.2	40-55
RE390	300	100	9	36	/	0.12	1.8	0.2	45-55
RE850-10	220	100	12	40	160	0.12	1.9	0.2	45-55
RE850-15	260	110	13	42	160	0.12	1.9	0.2	45-55
RM100-15	160	100	13	30	150	0.15	1.95	0.2	35-45
RM100-20	350	140	15	50	130	0.15	1.85	0.2	45-55
RE360	80	55	5	20	80	0.15	1.8	0.15	35-45
RM200-15	160	80	10	35	130	0.1	1.85	0.2	45-55
RM230	150	90	10	30	120	0.1	1.9	0.1	30-40
RV901	136	98	10.2	35.6	100	0.12	1.98	0.03	68
RV902	210	90	10	35	120	0.12	2	0	50-60
RV905	210	90	10	35	120	0.12	2	0	50-60
RV930	138	98	10.3	34.6	100	0.12	1.96	0.03	66

Electrical Properties		Thermal & Flame Retardant Properties		Application
Dielectric Strength(KV/mm)	Arc Resistance(Second)	Heat Deflection Temperature@264PSI(ºC)	Flame Resistance
ASTM D149	ASTM D495	ASTM D648	UL94
15	180	260	V0	Electrical Switchgear
15	180	260	V0
12	180	260	V0
12	180	260	V0
15	180	260	V0
12	190	260	V0
12	190	260	V0
10	180+	260	HB	Multi-purpose Applications
/	180	260	HB
12	180	200	V0	Encapsulation
/	180	280	/	Housewares
/	/	260	HB	Microwave
/	/	≥200	/	High quality automotive headlamp
/	/	/	/	Automotive headlamp
/	/	/	/
/	/	≥200	/

Recommended Products
Company Profile
Founded in 2002, Changzhou Rule Composite Material Co., Ltd, is a enterprise engaged in in manufacturing high-performance unsaturated polyester resin, gel coat, glass fiber reinforced composite materials and other related products, also professional in research, development as well as technical consulting and services of composite materials.
Rule Composite Material covers an area of 50, 000 square meters, with a modern office building, an independent R& D center and a high-standard production workshop, equipped with the leading DCS automatic control production device. We also have a strong and advanced quality control department and technical support laboratory.
RULE focuses on the production of excellent-quality and creative-design resin products, so it is trustworthy. Our sweat and wisdom witness the footprints of yesterday's struggle, passion and dream fulfill today's victory. Forging ahead to make innovation in market economy, pursuing value of "innovation, creativity, sharing" in practice, it harvests a stream of praises and honors.
Exhibition photos

Certifications
Packaging & Shipping
FAQ
Why we choose Changzhou Rule Composite Material Co., Ltd?
What is resin?
Resin usually refers to products inclined to softening or melting after receiving heat. When softening, it shows a trend toward flowing under the influence of external forces. Under normal temperature, it is in solid, semi-solid state, and sometimes liquid organic polymer. Broadly speaking, any macromolecule compound that can be used as a raw material for plastic processing can be called resin.
What can resins do for you?
Resin products are widely used in sectors like railways, automobiles, wind power, shipbuilding, cooling towers, pipelines, coatings, electrical appliances, artificial stone, handicrafts, lighting tiles, sanitary ware, anti-corrosion engineering and so on. Rule has been granted certification of ISO9001: 2008 Quality Management System and ISO14001: 2004 Environmental Management System, and some products have won recognition of China Classification Society(CCS) and Food-Level Licenses of the Provincial Department of Health.
We are the professional resin solution provider.
With decades of experience in the R& D of resins, we can fully understand customers' needs and aspirations in the cooperation process and have presented countless solutions. Over the years, we work hard to optimize our products and make them attractive to end users.

---
