High Efficiency Hard Rock Stone Jaw Crusher Stationary Stone Crushing Machine

Product Description

Product Description

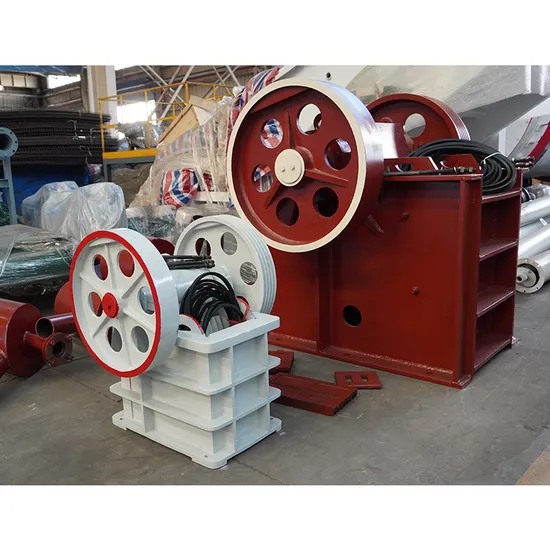

High Efficiency Hard Rock Stone Jaw Crusher Stationary Stone Crushing Machine
Jaw crusher is used as the first process for crushing various minerals and rocks. It can process various ores with compressive strength not exceeding 320MPa to medium particle size in one go. It is often used together with cone crusher, impact crusher, sand making machine, etc. to form a complete set of sand and gravel production lines, and is widely used in mining, metallurgy, chemical industry, building materials, power, water conservancy, transportation and other fields.
Product Features
1. Steel plate welding frame avoids casting defects and is more sturdy and reliable
2. Flywheel design effectively reduces vibration and ensures smoother machine operation
3. Adjustment of discharge port is faster and more convenient for gaskets
4. High chromium plate hammer, resistant to impact, wear, and high impact force
Working Priciple
The working mode of this series of crushers is driven extrusion type, and its working principle is: the electric motor drives the belt and pulley, and the movable jaw moves up and down through an eccentric shaft. When the movable jaw rises, the angle between the elbow plate and the movable jaw increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed or split to achieve the purpose of crushing; When the movable jaw descends, the angle between the elbow plate and the movable jaw decreases. Under the action of the tension rod and spring, the movable jaw plate separates from the fixed jaw plate, and the crushed material is discharged from the lower outlet of the crushing chamber. As the electric motor continues to rotate, the crusher's jaw undergoes periodic motion to crush and discharge materials, achieving mass production.
Application:
Product Parameters

Model	Max.feeding size(mm)	Discharge opening(mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)	Dimensions (L×W×H)
PE-150×250	125	10-40	1-3	5.5	0.8	720×660×850
PE-200×300	180	15-50	2-6	7.5	1.2	910×750×990
PE-200×350	180	18-70	3-10	11	1.5	1000×870×990
PE-250×400	210	20-60	5-21	15	2.8	1300×1090×1270
PE-400×600	340	40-100	16-64	30	7	1730×1730×1630
PE-500×750	425	50-100	40-110	55	12	1980×2080×1870
PE-600×750	500	150-200	80-240	55	15.8	2070×2000×1920
PE-600×900	500	65-160	50-160	55	17	2190×2206×2300
PE-750×1060	630	80-140	110-320	110	29	2660×2430×2800
PE-800×1060	640	130-190	130-330	110	29.8	2710×2430×2800
PE-830×1060	650	160-220	150-336	110	30.7	2740×2430×2800
PE-870×1060	660	200-260	190-336	110	31.5	2810×2430×2800
PE-900×1060	685	230-290	230-390	110	33	2870×2420×2940
PE-900×1200	750	95-165	220-380	110	52	3380×2870×3330
PE-1000×1200	850	195-265	315-500	110	55	3480×2876×3330
PE-1200×1500	1020	150-350	400-800	160-220	100.9	4200×3300×3500
PE-1500×1800	1200	220-350	500-1000	280-355	139	5160×3660×4248
PEX-150×750	120	18-48	8-25	15	3.8	1200×1530×1060
PEX-250×750	210	25-60	13-35	22	5.5	1380×1750×1540
PEX-250×1000	210	25-60	16-52	30	7	1560×1950×1390
PEX-250×1200	210	25-60	20-61	37	9.7	2140×1660×1500
PEX-300×1300	250	20-90	16-105	55	15.6	2720×1950×1600

Cases

Company Profile
Henan Hongji Mining Machinery Co, Ltd. is a large production-oriented enterprise with import and export qualifications, mainly providing "whole mining beneficiation equipment system and service, and is a large-scale joint stock enterorise intecrating RaD, manufacturing, sales. and EPC proiect The company is headguartered at No. 166 North Taojia Road, Xingyang City, Zhengzhou City, Henan Province , with a total area of more than 100000 square meterAfter more than 20 years of development, now t has three producton bases, more than 180 sets of varous arge and medium-sized processing machining ivetina. weldina. and assemblv equipment. more than 560 emplovees. with 105 senior and intermediate itles' professional encineers.

---
