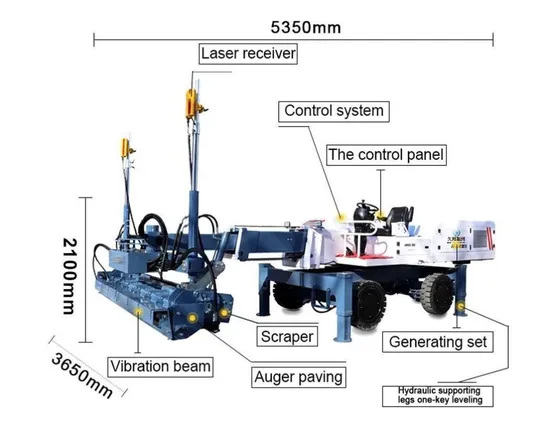

4-Section Telescopic Boom Laser Concrete Leveler Screed Leveling Machine

Product Description

Product Description

Name	Concrete Laser Screed	Excitation Force	3000N
Type	JB60-40	Vibration Frequency	60HZ
Engine Type	YANMAR 4TNV98T	Laser System	Trimble brand
Characteristic	4 Stroke,4 Cylinder	Laser Control System	Microcomputer laser scanning
	Water-cooled Diesel	Applicable Scope	Flat Surface ,Slope ,Double Slope
Cooling System	Closed Cooling Liquid	Configuration	Laser Emitter & receiver, Tripod
Power	63KW/ 2500rpm	Drive type	Full Hydraulic Drive
Fuel consumption	<=254g/kw.h	Soft Landing	Soft Landing System
Fuel	Diesel	Mini Turning Radius	2.9M
Fuel Tank Volume	140L	Cooling Liquid Tank	200L
Engine Oil Volume	8.9-10.6L	Tyre	Solid puncture-proof &antiskid tyre
Leveling system	SLS (self leveling system)	Walking Speed	0-8KM/H (Double speeds switch)
Screed Width	4M	Working Speed	24/Min
Telescopic Boom	6M Long, 360° Rotation	Speed Control	Stepless Speed Change.
Screed Swing Angle	120°	Turning	2 Wheel/4Wheel/ Crab Turning.
Paving Mode	Hydraulic Screw Conveyor Paving	Clean machine	Self configuration of machine
Paving Thickness	100-500MM	Theoretical Flow	15L/min.
Leveling Precision	1.5mm	Rated Pressure	150BAR
Vibrating System	Hydraulic Eccentric Vibrating Beam	Outline Dimension	5495*4555*2630 mm
Configuration	Laser Emitter & Receiver, Tripod.	Net Weight	8500Kgs

Company Profile
Nestled in Jining, Shandong, China, Jiubang Heavy Industry is a prestigious name in the world of heavy machinery manufacturing. As a national high-tech enterprise, established in 2010, our state-of-the-art factory spans over 60,000 square meters and employs a dynamic workforce of 370 professionals. With a robust network of 350+ after-sales outlets, we merge industry and trade prowess to excel in the innovation, design, production, and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklifts, new energy engineering vehicles, laser screed machines, and more. Our advanced facilities boast laser cutting machines, bending machines, and fully automated digital processing equipment, backed by numerous technical patents. Serving more than 20 countries across Russia, Southeast Asia, Kazakhstan, the Middle East, Africa, and beyond, we are committed to delivering superior products and services worldwide. We warmly invite global entrepreneurs to join us in mutual growth and success.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
