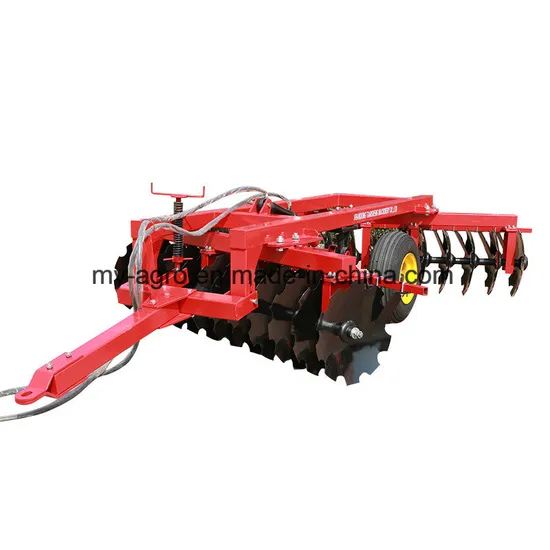

Hydraulic Trailed Offset 24 Discs Harrow with Wheels for 100HP Tractor

Product Description

The series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields. The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.

Model	Unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4
Overall dimension	cm	480*200*134	482*244*134	532*288*134	532*332*134	582*376*134
Weight	kg	1050-1100	1250-1300	1380-1430	1500-1550	1650-1700
Working width	m	1.8	2	2.5	3	3.4
Working depth	cm	20
Blade spacing	mm	230
No of disc	pc	16	20	24	28	32
Dia.of disc	mm	660
Transport clearance	mm	>160
Productivity	ha/h	1.1	1.3	1.4	1.7	1.9
Matched power	kw	44-55	52.9-66.2	55-73.5	58.8-88	66.2-100
Linkage		Trailed

---
