Basic Info.
Transport Package
Container
Specification
0.3-1.5*1250mm, 60m/min
Production Capacity
30-50sets/Year
Product Description
Home Built CNC Metal Steel Customized Coil Slitting Machine Longitudinal CNC Cutting Machine Factory Price High Speed Metal Steel Coil Slitting Line
Coil parameter
| 1 | /Matierial | SPCC, SPGC, |
| 2 | /Thinkness | 0.3-1.5mm (os≤300Mpa,ob≤300Mpa) |
| 3 | /Width | 400-1250mm |
| 4 | /Coilinside diameter | Φ510mm/Φ610mm(Add rubber ring) |
| 5 | /Coilousiade diameter | ≤Φ1800mm |
| 6 | /Coil weight | Max12T |
Product parameter(Coating)
| 1 | /Products width | 40-1250mm |
| 2 | /Slitting pics | 30pics(Thickness 0.3-1.0mm) 15pics(Thickness 1.1-2.0mm) 10pics(Thickness2.1-3.2mm) |
| 3 | /Width precision | ±0.05mm(Thickness 0.2-0.9mm) ±0.10mm(Thickness 1.0-3.2mm) |
| 4 | /Straightness | 0.5mm/1000mm(W≥100mm) |
| 5 | /Burr | 5% Thinkness,Min0.03mm |
| 6 | /Decoil inner diameter | Φ510mm |
Machine parameter
| 1 | /Speed | 30-60m/min |
| 2 | /Power | Around 120KW |
| 3 | /Direction | /By buyer |
| 4 | | 22mx9m(L X W) |
| 5 | /Source | AC 3×380V10%,60Hz±2% |
| 6 | /Compressed air | 0.4-0.8Mpa, 1000L/min |
| 7 | N46/Hydraulic oil | 500L/By buyer |
| 8 | /Color | /By buyer |
Description:
| | | | | |
| 1 | /Coil platform | 1Set | | |
| 3 | /Uncoil car | 1Set | AC1.5KW | Hydraulic |
| 4 | /Uncoiler | 1Set | / | AC invent control |
| 5 | /Sheet Feeder | 1set | AC2.2KW | |
| 6. | 2+3/2+3Roller Feeder | 1set | AC11KW | AC invent control |
| 7 | /Cutter | 1set | | Hydraulic |
| 8 | /EDC device | 1set | | |
| 9 | /Slitter(Single slitter) | 1set | AC30KW, Slitting Shaft: diameter 180mm | AC invent control |
| 10 | /Edge coiler | 2set | | AC invent control |
| 11 | 2#/Lifting platform | 1set | | Hydraulic |
| 12 | /Pre-separate device | 1set | | Hydraulic |
| 13 | /Tension machine | 1set | | Hydraulic |
| 14 | /Steering roll | 1set | | |
| 15 | /Decoiler | 1set | AC55KW | AC invent control |
| 16 | /Decoil car | 1set | AC1.5KW | Hydraulic |
| 17 | /Hydraulic pressure station | 2set | AC11KW,AC2.2KW | |
| 18 | /Control system | 1set | Simens S7-200 | PLC control |
| Qiangda120 |
| Model | Sheet Thickness(mm) | Width(mm) | No. of Slitting | Tolerance | Speed | Coil Weight(T) max |
| 120-1x650 | 0.2-1 | 150-650 | 30-8 | ±0.05 | 0-120 | 3,5 |
| 120-1x850 | 0.2-1 | 300-850 | 30-8 | ±0.05 | 0-120 | 5,10 |
| 120-1x1050 | 0.2-1 | 300-050 | 30-8 | ±0.05 | 0-120 | 5,10 |
| 120-1x1300 | 0.2-1 | 400-1300 | 30-8 | ±0.05 | 0-120 | 10,15 |
| 120-2x650 | 0.3-2 | 150-650 | 30-8 | ±0.05 | 0-120 | 3,5 |
| 120-2x850 | 0.3-2 | 300-850 | 30-8 | ±0.05 | 0-120 | 5,10 |
| 120-2x1050 | 0.3-2 | 300-1050 | 30-8 | ±0.05 | 0-120 | 5,10 |
| 120-2x1300 | 0.3-2 | 400-1300 | 30-8 | ±0.05 | 0-120 | 10,15 |
| 120-2x1600 | 0.3-2 | 400-1600 | 30-8 | ±0.05 | 0-120 | 15,20 |
| 120-2x2000 | 0.3-2 | 500-2000 | 30-8 | ±0.05 | 0-120 | 15,20 |
| 120-3x1300 | 0.4-3 | 400-1300 | 30-6 | ±0.05 | 0-120 | 10,15 |
| 120-3x1600 | 0.4-3 | 400-1600 | 30-6 | ±0.05 | 0-120 | 15,20 |
| 120-3x2000 | 0.4-3 | 500-2000 | 30-6 | ±0.05 | 0-120 | 15,20 |
| 120-4x1300 | 0.5-4 | 400-1300 | 30-6 | ±0.05 | 0-120 | 10,15 |
| 120-4x1600 | 0.5-4 | 400-1600 | 30-6 | ±0.05 | 0-120 | 15,20 |
| 120-4x2000 | 0.5-4 | 500-2000 | 30-6 | ±0.05 | 0-120 | 15,20 |
| 120-6x1600 | 0.6-6 | 400-1600 | 30-5 | ±0.08 | 0-120 | 15,20 |
| 120-6x2000 | 0.6-6 | 500-2000 | 30-5 | ±0.08 | 0-120 | 15,20 |
| | | | | | | |
| Qiangda200 |
| Model | Sheet Thickness(mm) | Width(mm) | No. of Slitting | Tolerance | Speed | Coil Weight(T) max |
| 200-1x650 | 0.2-1 | 150-650 | 30-8 | ±0.05 | 0-200 | 3,5 |
| 200-1x850 | 0.2-1 | 300-850 | 30-8 | ±0.05 | 0-200 | 5,10 |
| 200-1x1050 | 0.2-1 | 300-050 | 30-8 | ±0.05 | 0-200 | 5,10 |
| 200-1x1300 | 0.2-1 | 400-1300 | 30-8 | ±0.05 | 0-200 | 10,15 |
| 200-2x650 | 0.3-2 | 150-650 | 30-8 | ±0.05 | 0-200 | 3,5 |
| 200-2x850 | 0.3-2 | 300-850 | 30-8 | ±0.05 | 0-200 | 5,10 |
| 200-2x1050 | 0.3-2 | 300-1050 | 30-8 | ±0.05 | 0-200 | 5,10 |
| 200-2x1300 | 0.3-2 | 400-1300 | 30-8 | ±0.05 | 0-200 | 10,15 |
| 200-2x1600 | 0.3-2 | 400-1600 | 30-8 | ±0.05 | 0-200 | 15,20 |
| 200-2x2000 | 0.3-2 | 500-2000 | 30-8 | ±0.05 | 0-200 | 15,20 |
| 200-3x1300 | 0.4-3 | 400-1300 | 30-6 | ±0.05 | 0-200 | 10,15 |
| 200-3x1600 | 0.4-3 | 400-1600 | 30-6 | ±0.05 | 0-200 | 15,20 |
| 200-3x2000 | 0.4-3 | 500-2000 | 30-6 | ±0.05 | 0-200 | 15,20 |
| 200-4x1300 | 0.5-4 | 400-1300 | 30-6 | ±0.05 | 0-200 | 10,15 |
| 200-4x1600 | 0.5-4 | 400-1600 | 30-6 | ±0.05 | 0-200 | 15,20 |
| 200-4x2000 | 0.5-4 | 500-2000 | 30-6 | ±0.05 | 0-200 | 15,20 |
| 200-6x1600 | 0.6-6 | 400-1600 | 30-5 | ±0.08 | 0-200 | 15,20 |
| 200-6x2000 | 0.6-6 | 500-2000 | 30-5 | ±0.08 | 0-200 | 15,20 |

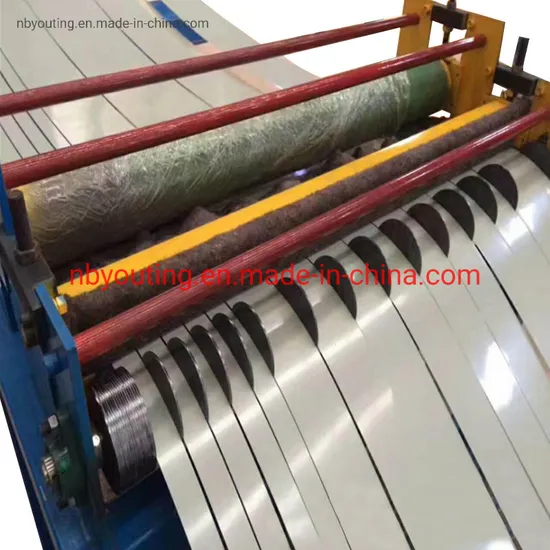

The steel coil slitting machine with compact structure, perfect mechanical hydraulic system and stable operation.
It has the self-tensioning design of the finished product winding, which can improve the tightness of the finished product winding.
The components are well-known brands and have a long service life. Adopt one-piece design to reduce equipment failure rate
Adopt programmable design, automatically switch the working mode of the production line according to the nature of the plate, which can significantly improve the production efficiency and reduce the maintenance frequency.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Delivery&Shipment
FAQ
1.What is your advantages?
More than 20 years experience in manufacture. We have professional engineers to provide technical support and rich experience in solving emergency. High degree of automation, high shearing accuracy and fast running speed.
2. Do you have after sales support?
We provide thoughtful after-sales service, and also arrange complete management cases for customers.
Training: Customers can get great training related to our products and technology from our factory Qiangda&Yuao.
On-site Service: Qiangda&Yuao has a complete technical service system.
We make sure that "the service team will go where our customer needs." May you have questions, please contact us or leave a message online.
Technical Support: We offer the technical support if needed. Our engineers will help you with installation and operation.
3. What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Plate diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per mon
>>
