High Precision Chuck Big Hole Threading Horizontal Pipe Thread Lathe Q1325

Product Description

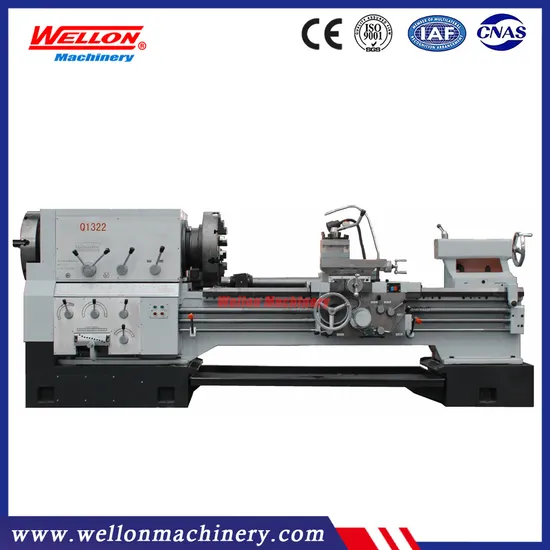

High Precision Big Hole Threading Horizontal Pipe Thread Lathe
Detailed Photos
Product Parameters

Performence Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads.
Application:
This lathe machine is mainly used for turning the internal and external threads including metric and inch thread,
as well as having all the common functions of normal engine lathe such as processing the inner bore and end
face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to
process taper thread.
Technical parameter:

Item	Unit	Q1325
Max dia.swing over bed	mm	800
Max dia.swing over cross slide	mm	550
Max.length of work-piece	mm	1500/3000
Width of bed	mm	550
Spindle bore	mm	255
Power of spindle motor	Kw	11
Spindle speed	r/min	VF2 steps15-350
Z axis feed grade/range	mm/r	32/0.095-1.4
X axis feed grade/range	mm/r	32/0.095-1.4
Carriage rapid traverse speed	mm/min	3740
Cross slide rapid traverse speed	mm/min	1870
Metric thread grade/range	mm	22/1-15
Inch thread grade/range	T.P.I	26/14-1
Traverse of cross slide	mm	320
Max. Traverse of turret	mm	200
Tailstock quill travel	mm	200
Tailstock quill Dia./taper	mm	Φ100/MT5#
Chuck		Φ630-four-jaw Manual
Overall dimensions(L*W*H)	mm	3650/5150×1800×1700
Net weight	T	5.5/7.3

Standard accessories:
3-jaw chucks
Tapper turning attachment
Work lamp
Coolant pump
Rear support bracket
Optional accessories:
Digital readout
Bigger size chuck
Face plate
Thread chasing dial
Steady rest
Follow rest
Protective cover
Grinding attachment etc
