Basic Info.
Automatic Grade
Automatic
Work Method
Hydraulic Pressure
Raw Material
Sand, Stone, Cement, Stonedust
Block Type
Hollow Concrete Brick Machine
Product Name
Automatic Concrete Making Machine
Name
Hydraulic Block Machine
Keywords
Automatic Cement Block Moulding Machine
Brick Type
Hollow Brick Concrete Brick Hole Brick
After Warranty Service
Video Technical Support
Warranty Service
Online Support
After-Sales Service Provided
Free Spare Parts
Advantage
Automatic Hydraulic Block Production Line
Machine Type
Fully Automatic Brick Block Making Machine
Transport Package
Shipping by Sea
Specification
2800*2300*2500mm
Production Capacity
40set/Month
Packaging & Delivery
Package Size
250.00cm * 220.00cm * 250.00cm
Package Gross Weight
3000.000kg
Product Description
brick block making building material machinery
Total rated power
| 22.25KW
| Block yard area
| 100M2
|
Daily capacity
| 4600-5000 pieces
| Power voltage
| 380V/220V AC
|
Pallet quantity
| 800-1000 pieces
| Labor quantity
| 3-5 people
|
Water consumption
| 3-5T/day
| Forming period
| 25S-30S
|

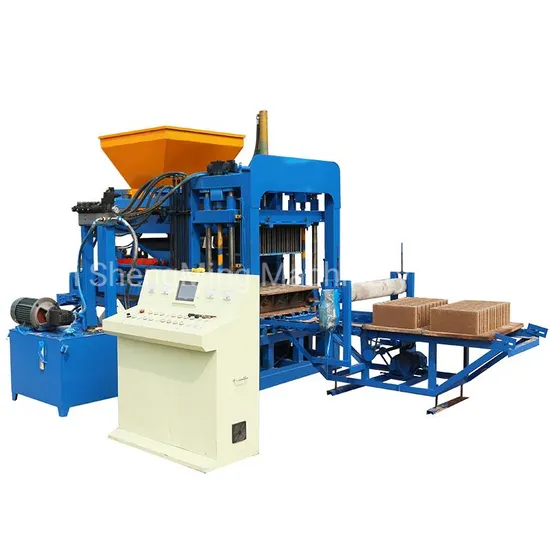

QT4-25 main features and advantages:
QT4-25 is an entry-level automatic brick making machine based on qt4-15 equipment. This machine adopts the excellent design of large-scale automatic equipment, and also has its own characteristics
1. The whole process of the machine is controlled by PLC, which is easy to operate and maintain.
2. High quality electrical and hydraulic parts make the machine stable in performance and less in fault.
3. The well-designed material storage and distribution system greatly improves the speed of the distribution system
4. Using the same vibration system of qt4-15, the molding is faster and the compactness is better
5. Unique mold synchronization system, making the product quality more accurate
6. The ultra-high cost performance makes the equipment stand out from the similar products. It is the only choice for you to invest in small and medium-sized block factories |
brick block making building material machinery
(1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
