Drinking Water Packaging Blow Molding Machine

Product Description

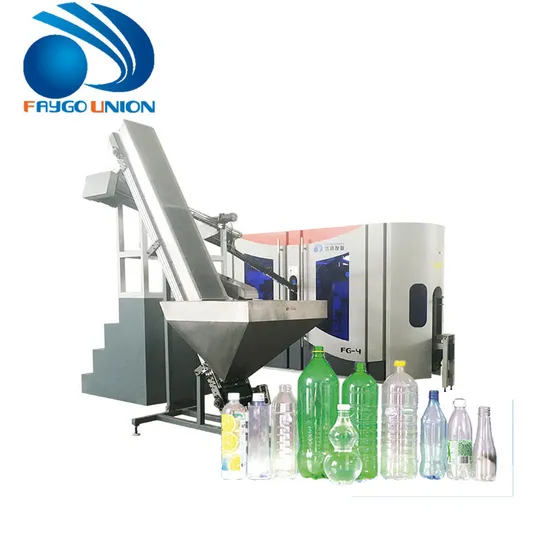

FG-4 four cavity oil pet bottle blowing making machine/PET bottle blowing machine
FG series automatic pet cola bottle blowing machine with two-step automatic blow machine.
It has four cavities and the maximum volume of the finial bottle is 2L.The capacity can be 6800-8000BPH, It can blow bottles in shapes:Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
1)High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6500BPH-8000BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Our high quality PET bottle blowing machine advantages
(1)The unique cam linking system intergrates mold-opening, locking and bottom elevating in one system, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed;
(2)With rotary continuous preforms loading system, which realized fast, efficient and stable preforms entrance;
(3)Heater distance is minused to 38.1mm, compared with the normal neating oven, it save more than 30% electricity, which help arrive energy saving effect, also equiped with the air cooling system and excessive heat doscharge system, it ensures the stable temperature at the heating zone.
(4)The pet bottle blow mouldig machine adopts modularization concept, make full machine convenient& cost-saving for future maintenance and changing changeovers.
FAYGO PLAST automatic pet cola bottle blowing machine main parts:
A).PLC colour display:OMRON(JAPAN)
B).Pneumatic parts:FESTO(GERMANY)
C).Controller of preform transfer:Servo motor National(JAPAN)
D).Other electric parts are all world-famous brand
FAYGO PLAST automatic pet cola bottle blowing machine Technology is below:
FG-4-6500-8000 Four Cavity Linear PET bottle blowing machine:
250ml-2000ml (25mm, 28mm& 30mm mouth)
1, Our Blowing Machine Advantages:
Our new design blowing machine for pet perform with below high-tech can save 130000kw electric for customer compare with normal linear four cavity blowing machine.
2, Our automatic pet cola bottle blowing machine Parameters are below:
I. Brief Introduction of PET bottle blowing machine :
FG4 series fill the gaps in the domestic high-speed linear blowing machine. Currently, domestic single-mold speed of linear blowing machine still stay around 1000BPH, while international max single mold speed has reached 1800BPH.
FG series blowing machine are equipped with automatic perform loading and unloading system. The machine is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and host machine.
II. Technical Features of PET bottle blowing machine :
1). High Speed: 6500-8000BPH (4-cavity).
2). Less Space consumption: Machine is highly integrated, the construction is highly compact.
3). Less electricity consumption: performs intercept is shorten to the minimum, compared with common
4).blowing machine 30% electricity can be reduced.
5). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
6). High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
7). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
8). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
III. Optional items of PET bottle blowing machine :
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.
2. HP air recovery system
After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.
3. Oven and preform temperature detection system
Real-time detect the temperature of the oven and the temperature of the preform after heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.
Blowing Machine
Heating Oven:By rotary and soft preform loading system, the speed of preform feeding is ensured, menawhile, the preform neck is well protected.
Bottle Outlet:The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
Configuration

Item	Brand	Origin
Magnetic valve	FESTO	Germany
Cylinder	FESTO	Germany
Servo system	Panasonic	Japan
Frequency inverter	Mitsubishi	Japan
PLC	Mitsubishi	Japan
Touch screen	Mitsubishi	Japan
Blowing valve	Parker	USA
One-way valve	FESTO	Germany
Throttle valve	FESTO	Germany
Reducing valve	DURAY	Germany

It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines.
Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

ITEMS	NAME	MODEL	QTY
1	Automatic Bottle Blowing Machine	FG-4(6500-8000)	1set
2	Touch Screen	Include electric parts& touch screen	1set
3	Preform Elevator	Including electrical parts& touch screen	1set
4	Preform Sorter	Sorted	1set
5	Air Compressor	WH-2.0/30-SB	3sets
6	Air Dryer	6.0m3/min 30Kg	1set
7	3 Stage Air Filter	6.0m3/min 30Kg	3sets
8	Oil separator	sorted	1set
9	Air Tank	2 m3	1set
10	Mold Chiller	5HP	1set
11	Oven Chiller	5HP	1set
12	500ml Blowing Mold	500ml	1set
13	250ml Blowing Mold	250ml	1set
14	1000ml Blowing Mold	1000ml	1set
15	1500ml Blowing Moul	1500ml	1set

---
