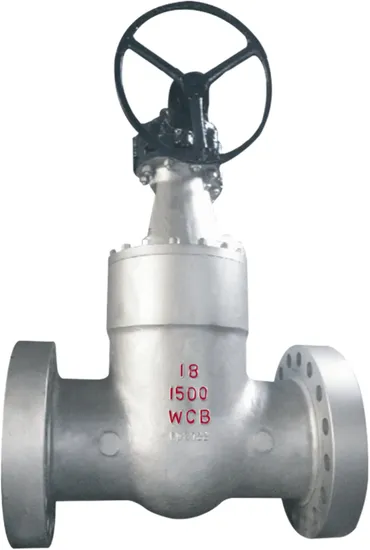

API/DIN/GOST Pressure 1500lb 2500lb Power Plant High Temperature Wc6 Wc9 Power Station Pressure Control Gate Valve

Product Description

1500LB/2500LB WC6 Welded High Temperature High Pressure Electric Power Plant Gate Valve Main External Dimensions. Product Description
Electric High Pressure Power Plant Gate Valve /Globe Valve/Check Valve Introduction The middle part of pressure seal gate valve
using pressure self-tightening structure,make sure the valve has good sealing performance under high pressure and high temperature conditions,usually,the sealing ring has two kinds of material,one is low carbon steel,the other is flexible graphite+SS 316,besides,the sealing surface is welding with hard alloy,after the welding is finished,the thickness of metal layer should be 3mm or more,therefore,it has advantages of wear-resistant,temperature-resistant and anti-corrosion,greatly prolong the service life.Both ends adopt welding structure,the dimensions of welding groove can be customized on clients' requirements.The medium can be high temperature and high pressure water,steam,oil products and super-heated steam.,etc,it's widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors. Electric High Pressure Power Plant Gate Valve /Globe Valve/Check Valve
Main Features. The central connection adopt pressure self-tightening structure. The disc and seat are welding with hard alloy. High temperature creep resistance design. The material of stem is precipitation hardening stainless steel by nitriding. Operating device can be manual,gear,bevel gear and electric actuator.
Main Parts and Materials. Detailed Photos 1500LB/2500LB WC6 Welded High Temperature High Pressure Electric Power Plant Gate Valve Main External Dimensions.

Main Parts and Materials.

No	Part Name	Material
1	Body	WCB,WC6,WC9,20CrMoV,15CrlMolV
2	Seat	A105,12CrlMoV
3	Wedge	WCB,WC6,WC9,20CrMoV,15CrlMolV
4	Stem	2Crl3,25Cr2MolV
5	Bonnet	A105,WCB,WC6,20CrMoV,12Cr1Mo1V
6	Sealing Ring	Graphite , Soft steel
7	Separate Ring	1Crl3,12Cr1MoV
8	Bolt	35,35CrMoA
9	Nut	45,35CrMoA
10	Packing	Graphite
11	Yoke	WCB,WC6,20CrMoV
12	Actuator	Assembly

DN (mm)	Dimensions (mm)			Weight(kg)
	L	D1	H
50	280	50	600	120
65	340	65	700	150
80	470	80	700	175
100	550	100	750	230
125	600	125	750	420
150	700	145	800	480
175	750	175	850	610
200	800	190	900	650
225	850	230	950	700
250	900	250	1000	1210
300	1100	290	1150	1820
350	1200(1250)	345	1400	2550
400	1300	400	1600	3080

Product Parameters

PN(Mpa)	Test Pressure(Mpa)		Working Temperature	Applicable Medium
	Shell	Seal
10.0	15.0	11.0	≤425 ºC	Water,Steam,Oil.,etc
16.0	24.0	17.6
20.0	30.0	22.0
25.0	37.5	27.5
32.0	48.0	36.0
