Efficient Rubber Sheet Cutter for Vertical and Horizontal Applications

Product Description

Discover the unparalleled efficiency of our Rubber Cutter Machine, a marvel of engineering specifically designed for precision in rubber strip cutting. Experience cutting-edge performance, ensuring every cut is as exact as the last.

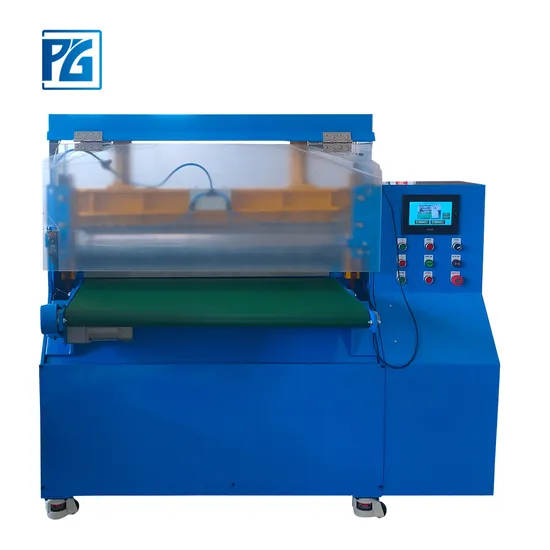

Machine Picture
Main Features The Numerical Rubber Cutting Machine boasts a prestigious and well-known brand PLC, guaranteeing exceptionally high precision and rapid response times, making it a leader in its class. Our advanced feeding system features a branded servo motor, celebrated for its outstanding accuracy, unwavering stability, and remarkable longevity. With an impressive feeding precision of ±0.1mm, and for cut lengths under 20mm, a weighing precision of ±0.2g, you are assured unparalleled performance every time. The main power is driven by a robust 3-phase slowdown brake motor that offers not only exceptional power but also superior safety, ensuring seamless and secure operation. Incorporating imported, state-of-the-art fiber sense positioning components, our machine delivers unrivaled accuracy and incredible durability, setting a new standard in cutting technology. Powered by an advanced chain belt system, it effortlessly slices through FKM sheets with a hardness rating of up to 90ºC with ease, proving its unmatched efficiency. The 7-inch HMI touch screen offers automatic counting, continuous monitoring, and proactive warning notifications, providing users with unparalleled convenience and intuitive operation. With a brand inverter at the helm of cutting speed, adjustments can be made directly and effortlessly, optimizing efficiency and performance with every cut. Our meticulously designed safety door device at the strip outlet mouth employs a dual-layered two-step protection method, ensuring maximum operational safety and peace of mind. The automatic material press system is engineered to significantly reduce operator workload and enhance convenience, streamlining operations like never before. Equipped with premium Tungsten steel W18 blades, the cutting blade is a testament to exceptional durability and an extended cutting life, ensuring longevity and consistent performance. Featuring an innovative bevel cut design, the cutting blade not only minimizes resistance but also boosts speed. Precisely cooperating upper and lower blades dramatically reduce abrasion and wear. All models offer customizable options with slitting cutters for both horizontal and vertical rubber sheet cuts. Slitter cutter blades are ingeniously designed for easy replacement and maintenance, enhancing operational flexibility.. The oil lubricant system is equipped with an automatic electromagnetic pump, minimizing interruptions and ensuring automatic oil refilling, maintaining smooth operation. Our innovative design and cutting-edge manufacturing techniques make the CNC rubber cutting machine exceptionally user-friendly and efficient, setting the benchmark for others to follow.Effortlessly adjust any length or cutting speed during operation via the intuitive touch screen, providing perfect results every time. Product Parameters

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-HA-600	PG-HA-800	PG-HA-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

Applications:
Expertly engineered to precisely cut rubber sheets into strips with remarkable speed and efficiency, redefining what is possible in rubber cutting.
PACKING
SHIPPING

---
