Welcome to visit

Top Quality Taiwan CNC Milling Machine

US$5,000.00
1-4 Set
US$3,000.00
5+ Set

Basic Info.

Model NO.
VMC650 VMC855 VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Worktable Size
500X1000, 600X1200
Transport Package
Good Wooden Case
Specification
2800x2500x2700
Trademark
AJMTG
Origin
China
HS Code
8457101000
Production Capacity
1200 Sets Per Year

Product Description

Company Profile
Product Description

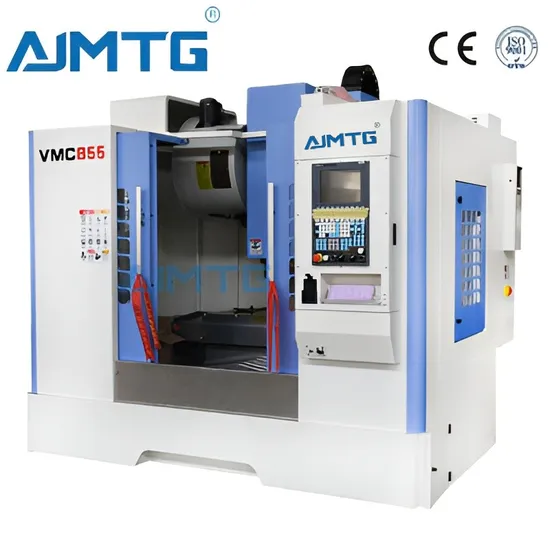

Discover the VMC series by Nantong AJ Industry Limited, featuring top-quality Taiwan CNC milling machines for precision machining needs. Choose from a range of 3/4/5-axis horizontal metal cutting mini vertical drilling CNC milling machines for efficient and reliable performance.
Product Parameters
Machining range X axis travel 800mm
Y axis travel 500mm
Z axis travel 500mm
Spindle nose to worktable 150-650mm
Spindle to column guide 550mm
Worktable Worktable size 1000x500mm
T slot 18X5X90mm
Weight load 500kgs
Spindle specification Spindle 8000rpm belt drive Japan make
Spindle motor 7.5kw
Spindle taper BT40(Ø140)
Feed system G00 fast feed 48/48/36m/min
G01 cutting feed 1-10000mm/min
Servo motor 2*2*3kw
Tool system Capacity 24 tools arm type Taiwan make
Main parts Make
Ball screw Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide Taiwan HIWIN or Germany 35mm pin roller type
Spindle Taiwan diameter 140mm , 8000 rpm
Tool magazine Taiwan BT40-24 tools arm type
Bearing for 3 axis Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Our Advantages
Export Certificate
