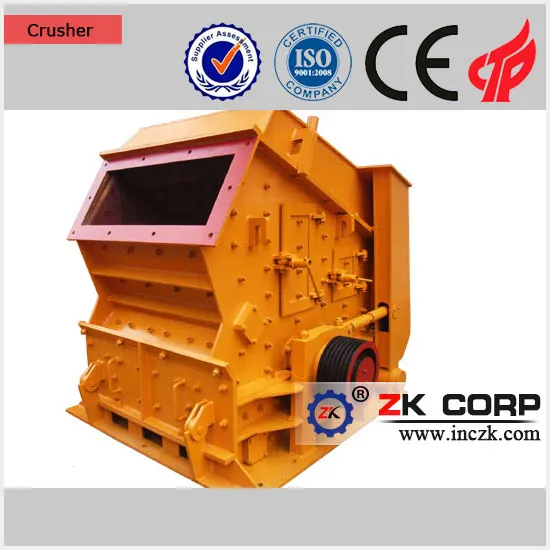

PF Series Small and Medium Model The Latest Crusher

Product Description

PF series crusher (counterattack broken) is mainly used for crushing, crushing compressive strength less than 320 MPA with stone material, suitable for production of high grade highway, hydropower, construction and other industries.
PF series crusher features and advantages:
1. Multi cavity uniform broken, suitable for crushing hard rock.
2. The entire plate structure to discharge a small particle size and cubic, no inner crack.
3. Large inlet, convenient production line layout and increase the feed size.
4. Full hydraulic open, easy to repair and replacement of damaged parts.
5. New wear-resistant materials make the plate hammer, impact plate and lining board longer service life.
When the ore into the crushing chamber by high speed rotary hammer impact crushing, and at a high speed into the back plate, the back plate back, again by the broken ore, ore was counterattack plate bounce back again by hammer blow, so repeated straight mineral particles smaller than the gap between hammer and counterattack plate, discharge of qualified products from the lower.
Henan Zhengzhou Mining Machinery Co., Ltd. Was founded in 1956, is designated units and the Ministry of Machinery Industry Henan Mechanical and Electronic Industry Department designated cement and washing equipment, after half a century of development, from the initial single production plants become an area of? ? 70, 000 square meters, plant construction area of 40, 000 square meters, the existing six modern workshop, two modern reloading plant, a technology center in Zhengzhou city, a variety of large and medium-sized metal processing, welding, assembly equipment, more than 260 pieces (sets), fixed assets of millions, scientific research, design, development, manufacture, sale, installation, commissioning and training services for an integrated modern enterprise. Currently, the company is the largest professional magnesium metal equipment supplier, has 25 years to maintain the industry first.
We has advanced production technology and rich experience in production, to provide customers with professional magnesium metal, mineral processing, cement, lime, ceramic sand a full-service equipment. In addition, the company's crushing, grinding, calcination, conveying, screening and other equipment class quality.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln: http://hnzkjq.en.made-in-china.com
Preheater: http://hnzkjq.en.made-in-china.com
Cement Mill: http://hnzkjq.en.made-in-china.com
Rotary Dryer: http://hnzkjq.en.made-in-china.com
Raw Mill: http://hnzkjq.en.made-in-china.com
Ball Mill: http://hnzkjq.en.made-in-china.com

model	Specifications	Inlet size( mm)	Maximum material size( mm)	Yield( t/h)	Power( kw)
PF-0807	Φ850x700	400x730	300	15-30	30-45
PF-1007	Φ1000x700	400x730	300	30-50	37-55
PF-1010	Φ1000x1050	400x1080	350	50-80	55-75
PF-1210	Φ1250x1050	400x1080	350	70-120	110-132
PF-1214	Φ1250x1400	400x1430	350	130-180	132-160
PF-1310	Φ1300x1050	490x1170	400	80-140	110-160
PF-1315	Φ1320x1500	860x1520	500	160-250	180-260
PF-1415	Φ1450x1500	1145x1520	950	220-450	220-315
PF-1520	Φ1520x2000	830x2050	700	300-550	315-440

---
