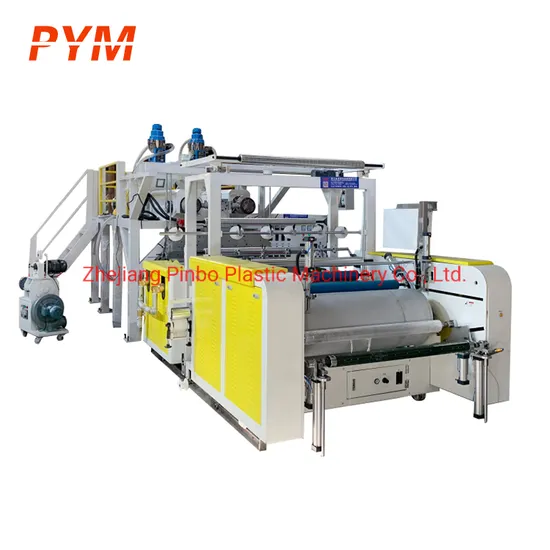

LLDPE Plastic Film Stretch Cling Film Machine

US$50,000.00 1 Piece (MOQ)

Basic Info.

Plastic Processed
LLDPE
Product Type
Stretch Film Machine
Screw
Single-Screw
Automation
Automatic
Computerized
Computerized
Vlotage
Customized
Design Speed (Max)
150m/Min
Thickness
12-50 μm
Power(W)
75kw
Weight
8t
Screw L/D
30:1
Transport Package
Standard Packing
Specification
7500*3000*3000mm
Trademark
PYM
Origin
Zhejiang Province Wenzhou City

Product Description

PYM Polyethylene Stretch Film Making MachineProduct Specification
Model No. PYM-55/75*1250
Screw Diameter 55/75mm
Screw L/D 30:1
Screw Speed 50-150rpm
Layer Structure AB/ABA
Film material PE
Film Width 1000mm/2*500mm
Film Thickness 0.01-0.05mm
Electric power supply Customized, Standard is 380V/50HZ/3P
Total Power 75KW
Capacity 80-150Kg/h
Total weight 8T
Dimension 7.5M*3M*3M

Product Advantages Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min Optional full automatic thickness gauge Excellent stretch film rolls quality for both hand use rolls and stretch use rolls
