Welcome to visit

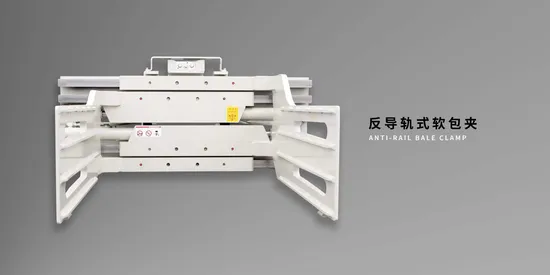

Forklift Part Attachment Revolving/Sideshifting Bale Clamps Sideshifter for Heli Clark Mitsubishi Linder

US$3,400.00-5,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Customized
Material
High Strength Profile Steel
Surface Treatment
Polishing
Customized
Customized
Standard
Standard
Rotating
360 Degree
Sideshifting
Optional
Valve Core
Sun Brand
Seals
Nok/Parker
Transport Package
Plywood
Specification
0.8-25t
Trademark
LDSJ/HELI/No brand
Origin
China
HS Code
84312090
Production Capacity
8000pieces/Year

Product Description

Product Description Bale clamps can efficiently handle many types of baled products such as cotton, synthetic textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales without wrok platform condition.
Detailed Photos
Product Parameters
Revolving Bale Clamps
Capacity @ Load Center Catalog Order NO. Mounting Class Opening Range Arm Height Arm Length Frame Width Hook Spread Arm Thickness Weight Effective Thickness Vertical Center of Gravity Horizontal Center of Gravity Available Forklift
Kg @ mm O
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
(kg) ET
(mm)
VCG
(mm)
HCG
(mm)
(t)
1900@500 RJ19RT-A1 II 445-1670 418 990 1040 815 75 530 198 221 275 1-2.5t
1900@500 RJ19RT-A2 II 460-1700 418 1190 1040 814 75 710 257 303 355 1-2.5t
1900@500 RJ19RT-A3 II 580-1960 418 1190 1040 814 75 760 252 295 339 1-2.5t
2700@500 RJ30RT-B1 III 570-1880 460 1200 1010 814 75 790 259 313 371 3-4.5t
2700@500 RJ30RT-B2 III 650-2020 460 1200 1100 814 75 810 259 313 369 3-4.5t
Notes:
1. Please obtain the actual comprehensive bearing capacity of forklift/attachment from the forklift factory.
2. The forklift truck needs to add 2 groups of oil lines.
3. The arm thickness is the needed minimum wedge gap size when clamping, but not the real thickness.
Features:
1. Two-way hydraulic locks for rotating oil lines ensure safety when working.
2. High-performance alloy steel plates for left and right clamping panels.
3. The connection blocks are integrally charged with good anti-bending performance.
4. 360 degrees of rotation.
5. Rotating oil hinge has the self-locking function.
Company Profile
Anqing Liandong Engineering Trucks Attachments Co., Ltd. (hereinafter referred as LDSJ) is a holding subsidiary of Anhui Forklift Group Co., Ltd. and was created in January 2011. It integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.
At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents, and LDSJ actively participates in and lead the formulation of industry standards for construction machinery attachments.
The company has high-efficiency digital intelligent equipment such as CNC cutting machine, welding robot, machining center, CNC lathe, shot blasting machine, washing machine and painting line. It also has advanced physical and chemical laboratories and perfect product testing facilities. LDSJ is totally committed to continuous quality improvements, from product design to after-sale service, providing excellence to customers worldwide. All this in full observance of a fair social policy towards employees, customers, suppliers and society in general while respecting the environment. It has passed ISO9001, ISO14001, OHSAS18001 system certifications and ISO3834-2 international welding quality system certification.
LDSJ does more than simply sell attachments. It is the expert in material handling and is committed to finding the right solutions to help the customers' business to be more efficient, more fruitful, save time and cost-thereby increasing profitability.
LDSJ will adhere to the requirements of new development concept, speed up the pace of product structure adjustment and upgrading, and continue to promote the high-quality development of the enterprise!
Certifications

Packaging & Shipping
