Construction Machinery 25 Ton Excavator CE Approved Factory Price Crawler Excavator

Product Description

Company Profile
Product Description

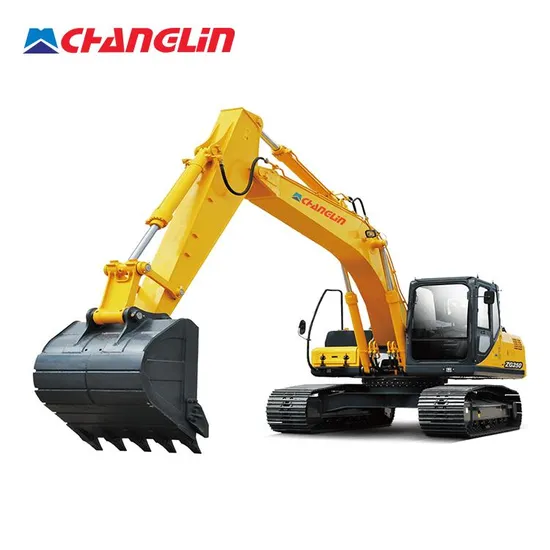

CHANGLIN ZG250 Equipped with engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts. Based on the above advanced technology, CHANGLIN ZG250 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Equipped with engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs
•Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency.
•High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads.
•Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm, maintenance information prompt.
•The LC-type reinforced track has high strength and abrasion resistance, making the whole machine safer and more stable. Product Parameters

	ITEM
Dimensions	Operating weight	Kg	25000
	Rated bucket capacity	m3	1.2
	Overall length	mm	9840
	Overall width(600mm track shoe)	mm	3180
	Overall height	mm	3180
	Trunable width	mm	2700
	Cabin height	mm	2996
	Groundclearance of counterweight	mm	1062
	Engine cover height	mm	2375
	Min. ground clearance	mm	480
	Tail length	mm	2870
	Turning radius of turnable	mm	2940
	Wheel base of track shoe	mm	3650
	Chassis length	mm	4640
	Chassis width	mm	3180
	Track shoe gauge	mm	2580
	Standard track shoe width	mm	600
Performance	Max. traction	KN	204
	Travelling speed (H/L)	Km/hr	5.8/3.2
	Swing speed	rpm	10.5
	Gradeability	Degree(%)	35(70%)
	Ground pressure	Kgf/cm2	0.45
Working Range	Maximum digging radius	mm	10258
	Ground maximum digging radius	mm	10086
	Maximum digging depth	mm	6995
	Ground maximum digging depth	mm	6813
	Maximum vertical digging depth	mm	6090
	Maximum digging height	mm	9612
	Maximum dumping height	mm	6690
	Min. front turning radius	mm	3740
	Bucket digging force	kN	162
	Stick digging force	kN	123
Engine	Model		6BTAA5.9-C178
	Type		6-cylinder in-line, four-stroke turbocharger
	Emission		Tier II
	Displacement	L	5.883
	Rated power		133KW(178PS)@2000rpm
	Max. torque	N.m	708N.m@1500rpm

ACCESSORIESYou can install more and more accessories to discover more functions of the mini excavator.
Every year, we will attend exhibition all over the world. Hope we can have a face to face meeting and build a good business relationship.
Our Team
1. OEM Manufacturing welcome: Product, Package... 2. Some spare parts are provide to you each order at your requests for aftersales service, and any other extra parts are sold at EXW price. 3. Sunny after-sales service. Any problem, we will provide solution to solve it asap. 4. All of our products approved teh CE certificate. Our Advantages
We have obtained a number of professionally recognised certificates.
After Sales Service
24-hour remote on-line service.
We owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service & training methods, 24-hour remote on-line service, and on-site service and serve our customers seamlessly.

FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,

---
