US$8,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Finished Surface
Gear Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Dedicated Tongs
Transport Package
Plastic Film
Specification
5100*1200*2300mm
Production Capacity
China
Packaging & Delivery
Package Size
430.00cm * 200.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description

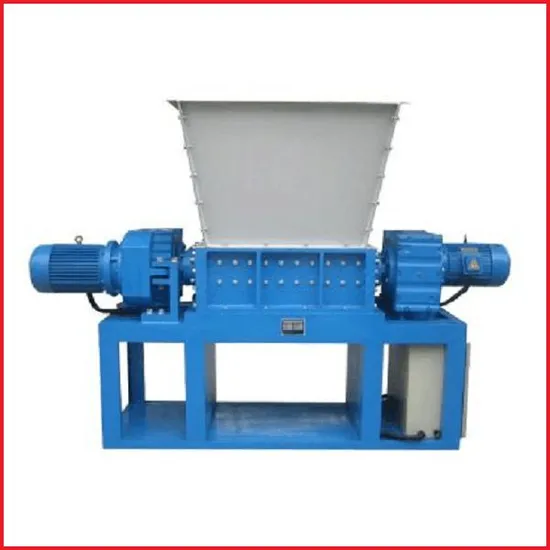

Bamboo Raft Double Shaft Shredder
Double shaft shredder machine is through the cut, tear and squeezing, reaching to decrease the size of raw material.
Wood/bamboo raft shredder machine also can be called wood pallet crusher, designed for pieces of aluminum material, suitable for all kinds of large volume, hard broken press block or not press block of aluminum material, has the advantages of uniform discharge, size control. Mainly used for shredding, crushing, crushing waste aluminum and other aluminum. According to the size of the material the client can choose aluminum shredding machine and four axis aluminum shredding machine.
Wood/bamboo raft shredder machine is widely used for waste plastics, waste rubber, timber and other waste materials.
High production efficiency, mechanized feeding way, high automation degree, greatly reduces the labor intensity of workers, improve the working environment.
The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.
Technical parameters:
| | Model | Power(kw) | Capacity(kg/h) | Quatity of blades | Inlet size(mm) |
Blades diameters Φ200*20 | FM-500 | 7.5-11 | 400-600 | 20 | 800*600 |
| FM-600 | 7.5-11 | 500-800 | 22 | 800*600 |
| FM-800 | 11*2 | 600-1000 | 30 | 1000*800 |
| FM-100 | 15*2 | 700-1200 | 30 | 1200*800 |
Blades diameters Φ200*20 | FM-800 | 15*2 | 800-1200 | 24 | 800*1200 |
| FM-1000 | 22*2 | 1000-1500 | 30 | 1000*1500 |
| FM-1200 | 22*2 | 1500-2000 | 36 | 1500*1800 |
| FM-1500 | 30*2 | 2000-2500 | 48 | 1500*2000 |
Blades diameters Φ400*40 | FM-800 | 15*2 | 1000-1500 | 18 | 800*1200 |
| FM-1000 | 30*2 | 1500-2000 | 22 | 1000*1500 |
| FM-1200 | 45*2 | 2000-3000 | 28 | 1500*2000 |
| FM-1500 | 55*2 | 2500-3500 | 36 | 1500*2000 |
Photo:
>>
