US$15,000.00-29,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Guide Way Type
Linear Guide
Transport Package
Plywood Case
Production Capacity
100pieces/Year
Product Description

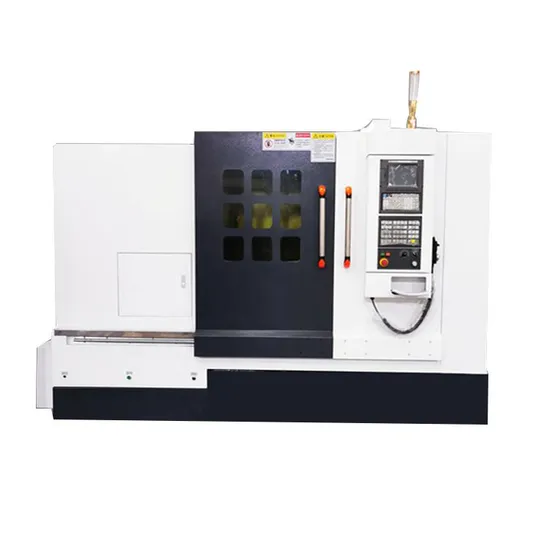

Slant Bed CNC Lathe
Slant bed and Linear guide way CNC lathe
The machine is The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument,automobile, motorcycle, bearings and so on
Higher accuracy
Taiwan linear guideways
Higher speed spindle unit,
Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe
| SPECIFICATIONS | Units | TCK56A |
| Swing over bed | mm | 560 |
| Swing over cross slide | mm | 360 |
| Distance between centers | mm | 500 |
| Spindle bore | mm | 65 |
| Bar capacity | mm | 50 |
| Spindle nose type | - | A2-6 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 4000 |
| Turret/tool post | - | 8 Hydraulic turret |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 200 |
| Z axis travel | mm | 550 |
| X axis rapid traverse | m/min | 24 |
| Z axis rapid traverse | m/min | 24 |
| Main spindle motor | kw | 11 |
| Tailstock quill diameter | mm | 74 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | - |
| Tailstock travel | mm | 450 |
| Guide rail type | - | Slant bed linear rail |
| Machine weight | kg | 4250 |
| Overall dimension | mm | 2950x1860x1850 |
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
>>
