US$12,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
Plastic Type
HDPE LDPE LLDPE PP Film
Certification
ISO9001:2008, CE
Color
Could Be Customized
Type of Extruder
Deagassing Type
After-Sale Service
Engineers Available to Service Machinery Overseas
Stage
Doulbe or Single or Multi
Feeder Type
Force Feeder or Compactor
Transport Package
Wrap Film
Specification
TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
Production Capacity
300~3000kg/H
Packaging & Delivery
Package Size
1500.00cm * 600.00cm * 500.00cm
Package Gross Weight
12000.000kg
Product Description
Plastic PE PP HDPE LDPE LLDPE BOPP PS ABS Pet PVC EPS EPE EPP PC Film Bottle Net Non Woven Bag Fiber Granulator Recycling Machine Pelletizing Line
Product Description

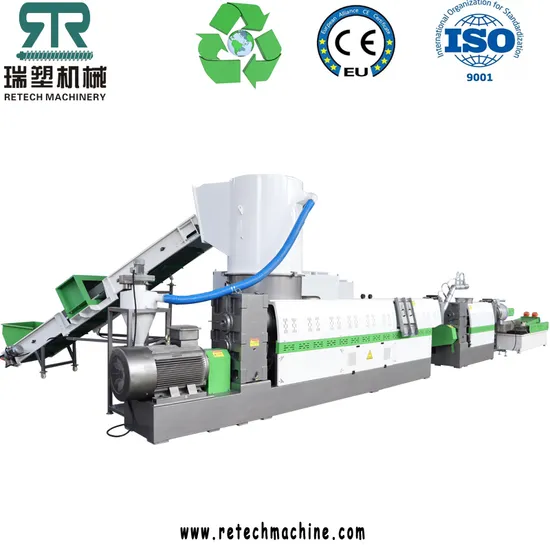

Our RCSJ series plastic compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step.applied in the plastics recycling and pelletizing reprocessing.
RCSJ PP PE film pelletizing system is a reliable and efficiency solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
Final productions produced by acs system are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc.
Our plastic film pelletizing machine can processing:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton * PP/OPP/BOPP/CPP film, woven bag,non-woven fabric (melt blown) * PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
How to work?
1. Feeding
Stable feeding by level
Customized components
1. Belt conveyor
2. Nip roller
Function:
to send material to compactor, working with metal detector to protect the blades in compactor
2. Cutter compactor
Cuts, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.
Function:
to cut and compacting material
3. Double degassing extruder
Able to process both printed and non-printed material.
Function:
to melt and heating the material by heaters. Degassing unit will remove useless cells for get strong granules.
4.Filtration system
1. Filter with dual channel system.
2. For non-stop operation and reduces machine down time.
Function:
to stop the impurities by mesh,laser filter is optional
5.Die face pelletizing
Produces high quality plastic pellets for reprocessing.
Customizate components:
1. Water-ring die face cutter pelletizing
2. Strand die (spaghetti type)
Function:
to cut the granules with pressure and die head
6. Vibrator screen
Function:
to choose the best and uniform granules
7.Electric Panel
Use world famous brand elements like Siemens
Function:
to control the whole production line
Detailed Photos
Product Parameters
| Model | Diameter of screw | PE capacity | PP capacity |
| RCDJ-85 | Φ85mm | 150-200kg/h | 100-150kg/h |
| RCSJ-85/85 | Φ85/85mm | 150-200kg/h | 100-150kg/h |
| RCDJ-100 | Φ100mm | 280-350kg/h | 250-300kg/h |
| RCSJ-100/100 | Φ100/100mm | 280-350kg/h | 250-300kg/h |
| RCDJ-130 | Φ130mm | 480-550kg/h | 400-500kg/h |
| RCSJ-130/130 | Φ130/130mm | 480-550kg/h | 400-500kg/h |
| RCDJ-160 | Φ160mm | 650-800kg/h | 600-750kg/h |
| RCSJ-160/160 | Φ160/160mm | 650-800kg/h | 600-750kg/h |
| RCDJ-180 | Φ180mm | 800-1200kg/h | 750-1000kg/h |
| RCSJ-180/180 | Φ180/180mm | 800-1200kg/h | 750-1000kg/h |
