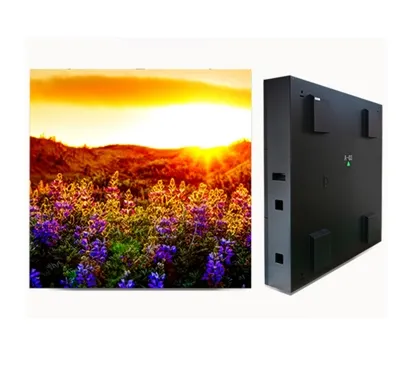

Outdoor 960*960mm Front Service SMD Digital Display P10 LED Display Advertising LED Screen

Product Description

Product Description Product Parameters

Model Name	QX3.9S	QX4S	QX5S	QX6.6S	QX8S	QX10S
Pixel Pitch	3.91mm	4.0mm	5.0mm	6.67mm	8mm	10 mm
Pixel Density/sqm	65,536 dots	62500 dots	40,000dots	22,478 dots	15,625 dots	10,000 dots
LED Configuration	SMD1921	SMD1921	SMD1921	SMD3535	SMD2727	SMD2727
Module Size	250mm*250mm	320mm*320mm	320mm * 160mm	320mm* 160mm	320mm * 320mm	320mm*320mm
Module Resolution	64* 64 dots	80* 80 dots	64 * 32 dots	48 * 24 dots	40 * 40 dots	32*32 dots
Panel Dimension	1000*500*120mm	960*960*120mm	960*960*120mm	960*960*120mm	960*960*120mm	960*960*120mm
Panel Resolution	256* 128 dots	240* 240 dots	192 * 192 dots	144* 144 dots	120*120 dots	96 *96 dots
Panel Weight	20 Kg	40 Kg	40 Kg	40 Kg	40 Kg	40Kg
Driving Mode	1/16 or 1/8	1/16	1/8	1/6	1/4	1/2
Refresh Rate	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz
Brightness	≥ 5000-7000 cd/sqm	≥ 5000-6500 cd/sqm	≥ 6000 cd/sqm	≥ 6000 cd/sqm	≥6000 cd/sqm	≥6000 cd/sqm
color processing bits	14-16bit
Cabinet raw material	Steel/Aluminum
IP rating	IP65
Applicable standards	CCC,TUV-CE,ETL

Product Case Packaging & Shipping Packaging:
1.The led display modules are packed in cartons.
2.The cabinets of fixed led screen packed in wooden case.
3.The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.

Shipping:
We have three modes of transport:
1. Express: The most popular mode of transport, space and time of full freedom, flexible, adaptable.
2. Sea transportation: Large transportation capacity, high transport freedom.
3. Air transportation: Fast transport speed, smooth operation, less damage to goods.
Company Profile
Certifications
FAQ Q: Are you trading company or manufacturer?
A: Micsolar is a led display manufacturer with 10 years experience, we have exported to 65 countries so far.
Q: What's the warranty?
A: We offer 2 years warranty for led display, any quality problem during warranty time will be handled
Q: What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.
Q: What is your terms of delivery?A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

---
