US$20.00-25.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
2PT 3PT steel cutting rule
Bevel
Center Bevel or Long Center Bevel
Packing
Coil or Strip Packing
Transport Package
Carton Box
Specification
2pt 3pt 4pt
Production Capacity
5000 PCS/Year
Product Description
Cutting and Creasing Rule
1. Application
Steel cutting rule for die makers, die shops, die cutting, die making and carton box factory.
2. Types available
Cutting rule, creasing rule, perforating rules, wave rules, cut and creasing rule.
Specifications
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle (42/52)
Shape-----center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
Bevel: center bevel or long center bevel
Packing: Coil or strip packing for clockwise or anti clockwise
High frequency quenching
| Name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°\52° |
| 0.53 | 23~23.80/1000 | 125 |
| 0.71 | 23~23.80/1000 | 100 |
| 1.05 | 23~23.80/1000 | 70 |
| 1.42 | 23~23.80/1000 | 50 |
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22~23.8/1000 | 100 |
| 1.05 | 22~23.8/1000 | 70 |
| 1.42 | 22~23.8/1000 | 50 |
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |

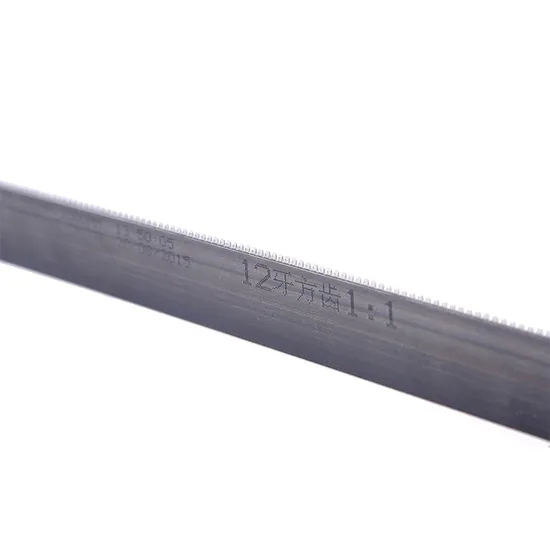

| Perforating rule | 0.71 | 23~23.80/10001*1~10*10 | 100 | 38HRC-54HRC | 42°\52° |
| 1.05 | 23~23.80/10001*1~10*10 | 70 | | |
Die cutting cardpaper, box, carton, corrugated box and so on...
Cutting rules in coils is very suitable for auto bender.
Our Services
1. QC System:100% inspection before shipment.
2. Drawing format: CAD / PDF/ DWG/ IGS/ STEP
3. Packaging: Standard package / Pallet or container / As per customized specifications
4. Payment Terms: 30 -50%T/T in advance,
70-50% balance before delivery; PayPal or Western Union is acceptable.
>>
