OverviewQuick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-207
Communication:RS232/485 to CAN
Voltage:+9 ~ 30V DC
Current:20mA (Max), 24V DC
Working temperature:-40℃~ +85℃
Dimension:112*70*25mm
color:blue
Weight:100g
IP grade:IP 20
Packaging & DeliverySelling Units:Single itemSingle package size: 26X16X6 cmSingle gross weight:0.500 kgPackage Type:Export cartonLead Time:
| Quantity(sets) | 1 - 500 | >500 |
| Est. Time(days) | 7 | To be negotiated |

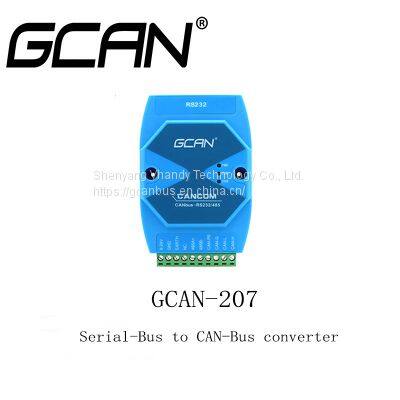

The GCAN-207 converter has integrated one standard CAN-Bus interface, one serial-Bus interface (RS232 or RS485). GCAN-207
converter can build a connection between Serial-Bus and CAN-Bus. With this converter,equipment that used Serial-Bus can connect to
CAN-Bus without changing the hardware structure, this makes multi-Bus interconnection very flexible, and extends the application
scope of CAN-Bus.
Parameters
|
Interface
| RS485,CAN use terminal inerface,RS232 use DB9 interface
|
Connection method
| RS232 interface adapts three-lines connection,RS485 interface adapters two-lines connection
|
Protection module
| Integrate with electrical isolation protection module
|
Support CAN-Bus communication baud rate
| 5Kbps~1Mbps
|
Support serial interface baud rate
| 600bps~115200bps
|
Electric isolation,insulation level
| DC1500V
|
Receive maximum data flow
| 14000FPS
|
Voltage
| 9~30V DC power supply(DC24V)
|
Current
| 20mA
|
Working temperature
| -40℃~85℃
|
Size
| 112*70*25mm
|
Features
|
Protocol
| Support CAN2.0A and CAN2.0B,conform to ISO/DIS11898
|
Supply two kinds of conversion modes
| transparent conversion,transparent conversion with identity,format conversion
|
Configure three kinds of conversion directions
| bidirectional conversion.CAN→serial interface.serial interface→CAN
|
Support Windows operating system
| Windows XP,7,8,10,etc
|
Whether it can be redeveloped
| Support secondary development,we can provide routine such as VC,VB,Net,Delphi,Labview,C + +,builder and others
|
Software
| Support Access Port assistant sotfware
|
Custom made
| Support customization
|
Typical application
■ Pile public bicycle system communication bus transformation.
■ No CAN interface PLC to collect CAN bus data.
■ RS485 interface sensor CAN communication transformation.
■ Transformation of long-distance communication of fire-fighting equipment.
