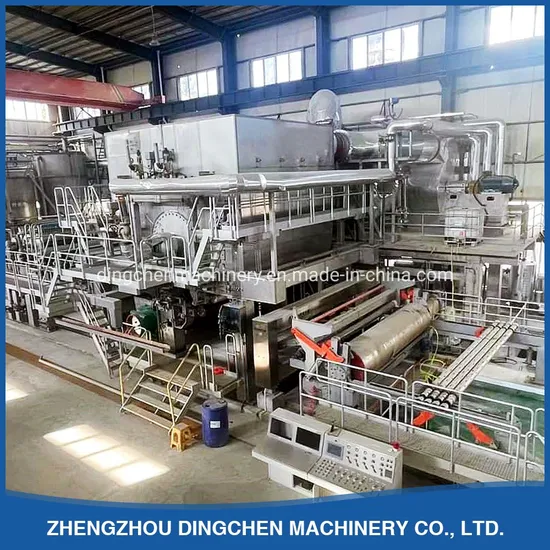

2400mm Toilet Paper Whole Production Line Equipments Paper Machine

Product Description

2400mm Toilet Paper Whole Production Line Equipments Paper Machine

Technical parameter:
1.Raw material: waste paper, wood pulp
2.Output paper: high and middle grade tissue paper
3.Output weight: 13-40g/m2
4. Net paper width: 2400mm
5.Wire width: 2850mm
6.Capacity: 8T/D
7.Working speed: 100-200m/min
8.Rail gauge: 3200mm
9.Drive: AC converter frequency conversion, adjustable speed, drive step by step
10.Model design: square box type, Slurry inversion type
11.Standard of design: National standards for the export of equipment.
For complete paper making machine, There are THREE Main Parts:
1.Pulping equipment ( Different Raw Material: Waste Paper, Virgn Pulp Board, Mixed Pulp. )
2.Paper making machine ( Different Paper Width, Paper Weight, Production Capacity. )
3.Paper processing equipment ( Different type according to customer's requirement. )
Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips
Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Structure of major equipments:
1. Cylinder part: one stainless-steel plate type cylinder (Φ1500mm×2850mm). one Sealed pressure cylinder vat. One couch roll (Φ500mm×2850mm), rubber hardness HS-38°±2
2. Dryer part: one dryer can (Φ2500mm×2850mm), one touch roll(Φ550mm×2850mm), pneumatic loading mechanism. Rubber hardness HS-900±2, dryer can equipped with one set of Double air exhaust
3. Reeling part: one roll cylinder (Φ1000mm×2850mm),reel paper on sweat cylinder
4. Rewinding and cutting: equipped with rewinding & drilling machine, cut machine
5. Transmission & Control Division: AC frequency converter and adjustable speed, processing transmission
All the necessary equipments:

No.	Equipment	Quantity (set)
1	2400mm single cylinder single wire & single felt high speed tissue paper machine	1
2	Double-dryer breathing type exhaust hood	1
3	axial-flow fan	1
4	Sealed pressure cylinder vat	1
5	15 type roots pump	1
6	Suction box	2
7	8m3 High consistence hydrapuler	1
8	2m2 High frequency vibrating screen	1
9	35m3 bleacher	4
10	380 double disc refiner	2
11	Φ700 thruster	6
12	CX0.9 centrifugal screen	1
13	606 desander 5sets	1 group
14	Two-phase flow pump-100	6
15	Two-phase flow pump-150	4
16	2400mm rewinding & drilling machine	1
17	Cutting machine	1
18	Pump cabinet	1
19	Frequency control cabinet	1
20	4T boiler	1

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
