Three-Phase If Power Supply/Transformer Induction Withstand Voltage Test Set/150Hz200Hz400Hz Motor Generator Set/Three Phase Medium Frequency Power Source

Product Description

EP-DVDF

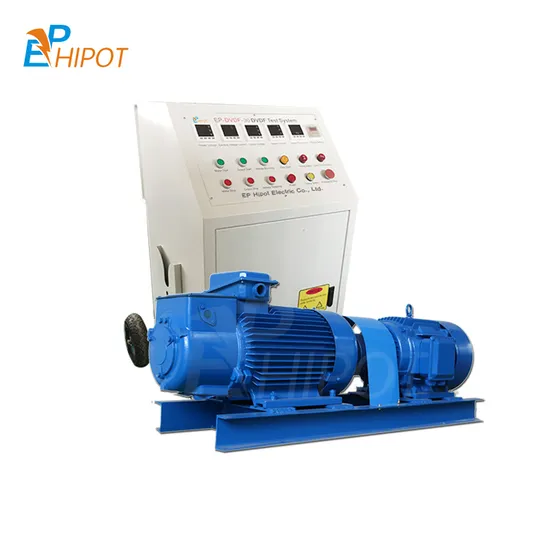

Inductive Withstand Voltage (DVDF) Test System
General Information:
DVDF Test System mainly designed for transformer induction withstand voltage test and partial discharge test.
DVDF Control Table: 3 phase 4 lines Controlled by push button. Designed for generator set controlling. High anti interference ability Full protection functions: over-current, over-voltage, zero-starting light alarm. During testing process, press exit button to quit any tests. Press Emergency button if any abnormal happened. Digital voltage/current meter, precision 1.5 degree. Power source: 3 phase The system is consisted by below units: Generator Motor Set EPYZR 1set Generator Set Controlling Table EP-DVDF 1set
Motor Generator Set Main Specifications:

Power (kVA)	Output Frequency (Hz)	Operating Current(A)	Exciting Voltage(V)	Exciting Current(A)	Rated Output Current(A)	Rated Output Voltage(V)
30	150	9-14	140-185	15-18	15	800
30	150	9-14	140-185	11-25	9.5	1400
30	100	9-14	140-185	11-18	16	800
40	150	9-11	130-140	18-19	20.1	800
50	150	14-19	130-185	22-30	24.5	800
50	150	14-19	130-185	22-35	32	1400
50	100	14-19	140-185	22-30	16	800
60	150	19-24	100-150	11-18	32.5	800
60	150	19-24	170-220	28-38	22	1400
60	100	19-24	170-220	11-18	33	800
75	150	17-26	210-250	35-42	41	800
75	150	17-26	240-300	40-48	24	1400
75	100	17-26	210-250	34-40	42	800

Rated capacity: 30kVA
Generator input voltage: 380V
Generator input frequency: 50Hz
Generator input current: motor running current 14A, excitation current 18A
Rated speed: 1480r / min
Excitation voltage: 185V
Excitation current: 18A
Excitation frequency: 50Hz
Output voltage: 800V
Output current: 15A
Output frequency: 150Hz
Rated capacity: 40KVA
Generator input voltage: 380V
Generator input frequency: 50Hz
Generator input current: motor running current 15A, excitation current 19A
Rated speed: 1480r / min
Excitation voltage: 140V
Excitation current: 19A
Excitation frequency: 50Hz
Output voltage: 800V
Output current: 23A
Output frequency: 150Hz
Rated capacity: 50kVA
Generator input voltage: 380V
Generator input frequency: 50Hz
Generator input current: motor operating current 19A, excitation current 25A
Rated speed: 1480r / min
Excitation voltage: 150V
Excitation current: 25A
Excitation frequency: 50Hz
Output voltage: 800V
Output current: 24.5A
Output frequency: 150Hz
Rated capacity: 74kVA
Generator input voltage: 380V
Generator input frequency: 50Hz
Generator input current: motor running current 23A, excitation current 35A
Rated speed: 1480r / min
Excitation voltage: 280V
Excitation current: 35A
Excitation frequency: 50Hz
Output voltage: 1400V
Output current: 21.0A
Output frequency: 150Hz
This series can be customized according the customer's requirements. More details on motor generator test set DVDF please contact EP Hipot Electric, we have professional tech team to design correctly designed products and systems.

---
