High-Precision 1325 CNC Router for MDF and PVC Furniture

Product Description

Technical Paremeters

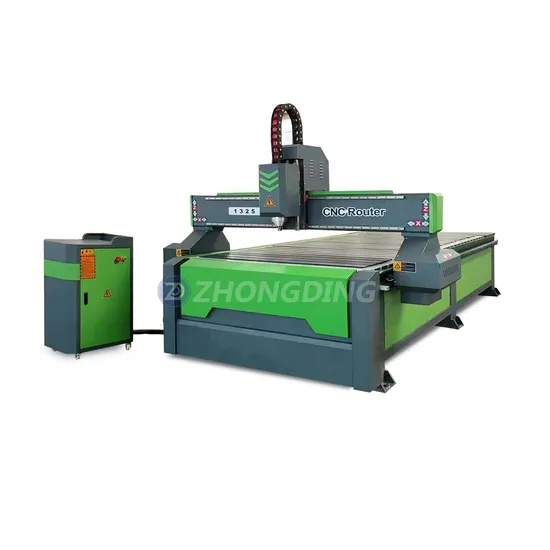

ZD1325 CNC ROUTER

ZD1325 Electric Wood Router -Adopt the gantry structure, the guide rail support surface is stable, the rack drive mode, the transmission is stable, guarantees the long time high speed movement does not deform, does not shake.The linear guideway and y axis are driven by double motors, which have large bearing redundancy and long life. Using double rack transmission, the operation is simpler and the design is more humanized.A variety of software compatible, compatible with type3/artcam/castmate/ carved / Wentai and other design and production software.

Model	1325
Working size	1300x2500mm
Working height	200mm
Running speed	0-18m/min
Processing speed	0-10m/min
Drive method	changzhou anhao 450b stepper motor
Drive	shenzhen leisai 860 stepper driver
Spindle motor	3.2kw water-cooled variable frequency spindle
XY axis guide and transmission	20 linear guideway, high precision rack drive
Z axis guide and transmission	20 linear guideway, original tbi ball rod transmission
Voltage	220V/50hz(380V/50Hz)
Supported formats	*nc,G code,*uoo,*mmg,*plt
Control system	NCstudio
Oil lubrication	Auto oiling
Control cabinet	Independent control cabinet

Product Details
Well-known brand water-cooled spindle, high speed, high torque.durable bearing and long service life.
Base Frame Solid, Heavy-Duty Construction.The base frame is a 5 axis cnc processed steel frame that is welded stress-relieved, and precision machined.
Rack and rail
Taiwan HlWIN rack guide rail, high precision, fast speed, high-precision grinding rack, double-row sliding block,Work stability and durability
Heavy-duty thickened steel body ,Selected thickened steel, tempered,sand blasted, and quenched to prevent deformation and cracking,strengthen and thickened body make.

T-shaped table and vacuum table are optional. The vacuum table has strong adsorption force and can strongly adsorb materials of different sizes. High density, not easy to deform, high temperature resistance
System and handle

Application
Wide range of applications
More scope of application and wider application
Meet your different needs
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Replying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as:polishing machines,panel machine,press machine etc,which have been exported to lots of countries and regions.We have establish 7 complete system to guarantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kind of machines.
Certifications

Exhibitions
Our customer feedback

FAQ
FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?
A5:Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.

---
