| US$5,000.00-60,000.00 | 1 Piece (MOQ) |

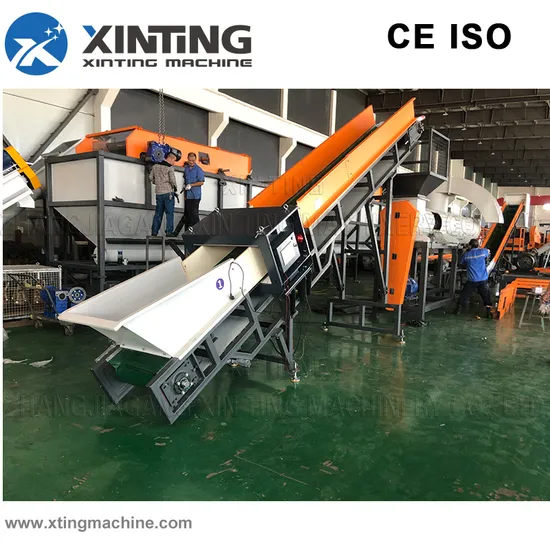

| 1 | Belt Conveyor | Bottles conveying |
| 2 | Bottle Label Remover | Remove above 90% labels for both common and compressed bottle; No flakes waste and no water consumption |
| 3 | Manual Sorting Belt | Manually sort out PVC bottle, labels, and other impurities |
| 4 | Belt Conveyor | Bottle conveyor tp crusher |
| 5 | PSJ1200 Crusher | Bottle crushing into flakes |
| 6 | Horizontal Screw Loader | Conveying flakes to next screw loader |
| 7 | Screw Loader | PET flakes conveying |
| 8 | Floating Washer | Wash flakes and remove floating materials as PP, PE and Caustic soda |
| 9 | Low Speed Friction Washer | Remove sand, mud and dirty |
| 10 | Hot Washer | After hot washing, it's easier to remove oil, glue |
| 11 | Screw Loader | PET flakes conveying |
| 12 | Hot Washer | After hot washing, it's easier to remove oil, glue |
| 13 | Screw Loader | PET flakes conveying |
| 14 | High Speed Friction Washer | Remove the glue and dirty |
| 15 | Screw Loader | PET flakes conveying |
| 16&17 | Floating Washer | Wash flakes and remove floating material as PP, PE and Caustic Soda |
| 18 | Spray Washer | Remove the Caustic Soda |
| 19 | Centrifugal Dryer | Drying and flakes moisture reach 2% |
| 20 | Pipeline Dryer | Hot air drying, moisture <1% |
| 21 | Label Flake Separator | Remove little amount of label and dust in PET flakes |
| 22 | Packaging System | Storage silo for PET flakes |
| 23 | Electric Cabinet | Electric control for the complete line, can be customized |
| Input capacity | 500kg/h | 1000 kg/h | 2000 kg/h |
| Workshop(M*M*M) | 42 (L)×10(W)×6(H) | 55(L)×15(W)×6(H) | 70(L)×18(W)×6(H) |
| Ancillary staff | 6Persons | 8 Persons | 12 Persons |
| Installation power | 156KW | 307KW | 420KW |
| Water Consumption: | 2Ton/h | 3.5Ton/h | 5 Ton/h |
| Final product | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm |
