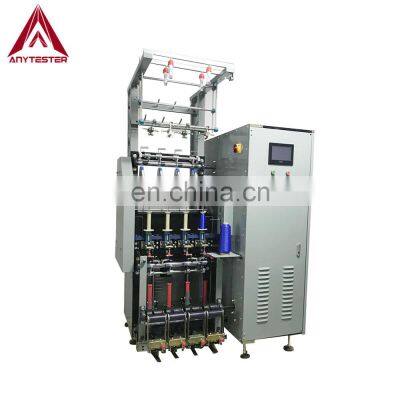

Product DescriptionAT208F Fancy Twisting Machine is used to spin some fancy yarns, such as, loop yarn, corrugated yarn, big-belly yarn and color yarn by feeding roving through the drafting mechanism, filament from hollow spindle and single yarn from the ring spindle and grooved drum. SpecificationModelAT208FControl modeTouch screen & PLC controlSuitable fiber typeCotton or cotton-type fibersFiber length21~42mmOutput capacity0.25~0.5kg/hNo. of spindles4Ring diameter¢75mmPressure modePendulum arm for cotton spinningDraft systemThree-roll-up & three-roll downDraft ratio2~50Diameter of drafting rolls25mmDistance between front &middle rolls44~73mmDistance between middle & back rolls47~48mmPower supplyAC220V 50Hz, single-phase, 1500WDetails & Features★ Large touch screen display and PLC control;★ Multi-functions of loop yarn, corrugated yarn, big-belly yarn and color yarn;★ Independent controlling of drafting rolls and grooved drum;★Twist directions of S/Z;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
