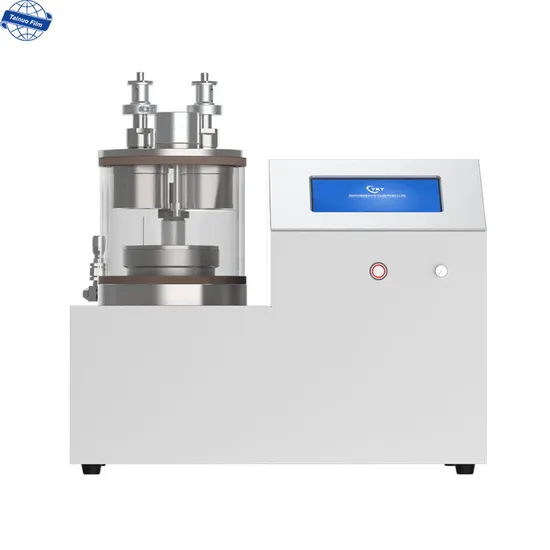

Lab 2 Inches Dual Target Plasma Sputtering Coater with Optional Mass Flow Meter for Coating Metallic Materials

Product Description

Lab 2 Inches Dual Target Plasma Sputtering Coater with Optional Mass Flow Meter for coating metallic materials
Product Description
Three target heads plasma sputtering coater is a cost-effective plasma sputter coating equipment independently developed by our company. The plasma sputtering target is a standard size of 2 inches. Customers can choose different configurations of 1~3 target heads according to their needs to meet the different experimental needs of single-layer film or multilayer films of various materials. The instrument is equipped with a 150W DC high-voltage power supply, which can be used for metal sputter coating, especially for the coating of metals such as gold, silver and copper. This film coater is equipped with a gas connection for the introduction of protective gas. The instrument adopts touch screen control, which is simple and intuitive to use. It can realize the operation of coating start and stop, switch target head position and baffle rotation with one button, which is very suitable for laboratory purchase.
This film coater is equipped with a two-stage rotary vane vacuum pump. It has the advantages of small volume, quick vacuuming and simple operation. If customers need to further improve the vacuum degree, you can contact the technician to select the molecular pump group to form a high vacuum system.
Application of three target heads plasma sputtering coater:It can be used for metal sputter coating, especially for metal coatings such as gold, silver and copper.

Product Parameters

Product model	TN-PLZ180-III-DC-Q
Sample stage	Size	100mm
	Distance from sample stage to target surface	20~35mm height adjustable
	Rotating speed	/
	Heating temperature	/
	Temperature control accuracy	/
Plasma sputtering source	Quantity	2 inches * 2
	Cooling method	Natural cooling
Vacuum chamber	Chamber size	φ180mm * 200mm
	Observation window	Omnidirectional visibility
	Chamber material	High purity quartz
	Open method	Top cover removable
	Upper and lower cover material	304 stainless steel
	Pumping port	KF16
	Intake port	1/4 inch ferrule connector
Power configuration	Quantity	DC power supplyx1
	Output power	Max. 150W
	Sputtering power	1200V
	Max. sputtering current	50mA
Vacuum system	Vacuum pump type	Dual-stage rotary vane vacuum pump
	Pumping port	KF16
	Exhaust interface	KF16
	Pumping rate	1.1L/s(4m3/h)
	Ultimate vacuum	≥0.1Pa
	Vacuum measurement	Resistance vacuum gauge
Others	Power supply	AC 220V 50Hz
	Total power	1.5kW/2kW
	Dimension	570mm * 450mm * 500mm
	Weight	30kg

Detailed Photos
Company Profile

FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price. Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues. Q. How long is your delivery time? If I want to customize the instrument, how long does it take? A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument. Q. Our country's power supply and plug are different. How do you solve it? A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries. Q. How to pay? A.T / T, L / C, D / P, etc., it is recommended to use Made-in-China Trade Guarantee. Q. How is the package of goods? Delivery methods? A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way. More questions, please contact me.

---
