US$30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Max. Milling with: 2000mm
Max. Milling Depth: 320m
Transport Package
Suitable Package for Shipment
Production Capacity
30 Sets Per Month
Product Description

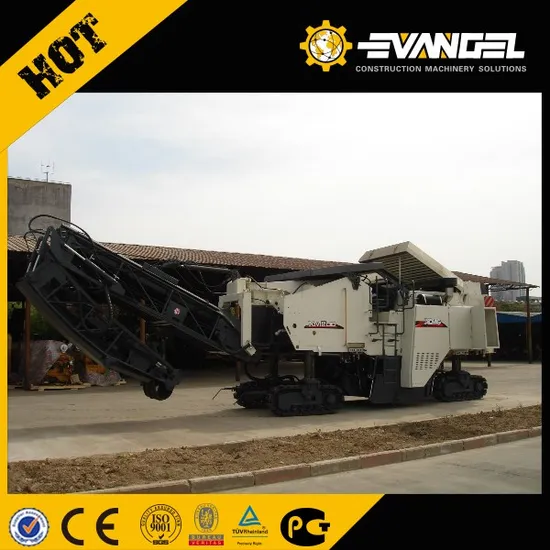

Cold Milling Machine XM200
1. Hydraulic driving milling
2.800mm width milling drum
3. CE Certification
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
1. Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
2. Compact three-wheeled machine with front-wheel drive. The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
3. The front steering driving axie has large steering angle and small turming radius, can mill along the manhole covers.
4. The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
5. The imported hydraulic elements have high working reliability.
6. Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
7. Hydraulic handheld breakers and rumble strip equipment can be selected.
| odel | | XM200 |
| | Max. milling with | mm | 2000 |
| | Max. milling depth | mm | 320 |
| Milling wheel | Number of tools | | 168 |
| | Drum diameter with tools | mm | 980 |
| Engine | Model | | QSX15 |
| | Rated power | kW | 447 |
| | Rated speed | rpm | 2100 |
| Specifications | Operating speed | m/min | 0~30 |
| | Travel speed | km/h | 0~5 |
| | Ground clearance | % | 80 |
| | Ground clearance | mm | ≤ 300 |
| | Operating weight | kg | 32500 |
| Volume | Fuel tank | L | 1300 |
| | Hydraulic oil tank | L | 400 |
| | Water tank | L | 3400 |
| Conveyor | Width | mm | 800 |
| Measurement | Overall machinery LxWxH | mm | 7130× 2500× 3000 |
| | Conveyor LxWxH | mm | 8000× 1150× 900 |
| Travel mode | | Track |
>>
