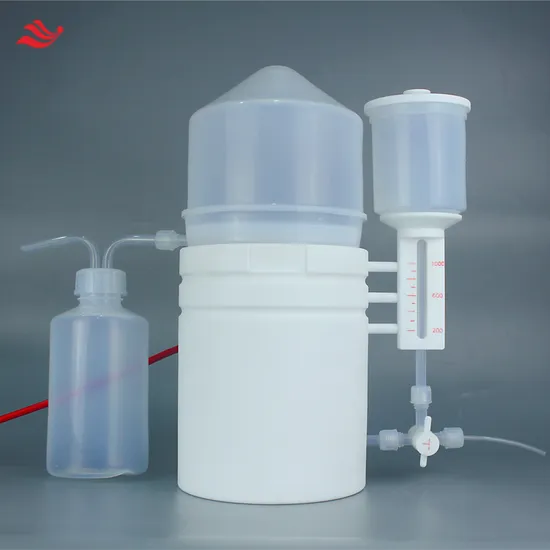

PFA Acid Purification System Prepares High Purity Hf Acid Suitable for Semiconductor

Product Description

Company Profile
Nanjing Binzhenghong Instrument Co.,Ltd is a professional laboratory product manufacturer which mainly has laboratory products based on PTFE/PFA/FEP and other materials, such as: beaker/reagent bottle/stirring bar/tweezers/funnel/volume flask/crucible/stirring rod/water tank/reaction bottle/washing bottle/ The measuring cylinders/etc.
Our products are sold all over the world (such as CUG, IGCAS, SGS, etc. )and are well received by experimenters in the semiconductor, electronics, and pharmaceutical industries, and are widely used in the chemical industry. Product Description
1. Features of PFA acid purifier
Efficient purification: PFA acid purifier effectively removes impurities in acid and improves the purity of acid through advanced membrane separation technology or distillation method. Some products use the principle of thermal radiation to keep the liquid temperature below the boiling point for evaporation, and then condense its acid vapor to prepare high-purity water and high-purity reagents.
Environmental protection and energy saving: Compared with traditional chemical purification methods, PFA acid purifiers usually adopt physical processes to avoid the generation of harmful by-products and reduce energy consumption.
Chemical stability: PFA material has excellent chemical stability and can resist a wide range of chemicals, including strong acids, strong bases and organic solvents.
High temperature resistance: PFA acid purifier can operate at high temperatures, usually with a temperature range of -200ºC to +260ºC.
Easy operation: The equipment is humanized in design, easy to operate and maintain, and easy to clean.
Material advantages: Use high-purity PFA material to ensure that the parts in contact with the acid are free of metal and quartz components to avoid contamination. All parts in contact with the acid are made of imported PFA material to reduce the interference of the acid and ensure the purity of the acid.
Cost-effectiveness: Through the PFA acid purifier, high-purity acid can be prepared from low-cost acid reagents, significantly reducing costs.
Safety performance: The design takes laboratory safety into consideration, such as a closed cavity, no acid gas overflow, safe and reliable; with overheating protection function, not afraid of evaporation; it can also prevent dry burning and observe the purification efficiency in real time. Some products are equipped with a liquid level gauge to observe the acid content in the cavity.
Technical parameters: It has precise temperature control function, high temperature control accuracy, programmable control, and adapts to different experimental needs.

Item No.	SCH-I 1000ml	SCH-II 2000ml	SCH-IV 4000ml
Name	Acid purification	Acid purification	Acid purification
Acid production rate	50ml/h	70ml/h	90ml/h
Temperature controller	PID	PID	PID
Temperature tolerance	±1ºC	±1ºC	±1ºC
Materials	PFA,PTFE,silica gel
Electric tension	220V/50Hz
Pow(W)	350
Features	1. Acid purification in closed environment can ensure the acid purity 2. Pure PFA and PTFE material can avoid the metal elements to pollute 3. Save cost.the purity acid can meet the demand of trace analysis 4. Easy to use and safety. 5. Almost no acid pull out during the acid purification.
MOQ	3pcs per size
Sample time	7 working days (Mass production time: 30 working days after received your deposit.)
Payment	30%TT and the balance should be paid before delivery.

Application industry
Application industry of PFA acid purifier
Chemical analysis and material science: High-purity acid has important applications in the fields of chemical analysis and material science. PFA acid purifier can meet the needs of these fields for high-purity acid.
Semiconductor manufacturing: In the semiconductor manufacturing process, high-purity chemicals are required. PFA acid purifier can prepare high-purity acid that meets the requirements of semiconductor manufacturing.
Photovoltaic industry: The photovoltaic industry also requires high-purity chemicals, and the application of PFA acid purifiers in the photovoltaic industry is becoming more and more extensive.
Biomedical research: In biomedical research, high-purity acid is a necessary condition for many experiments. PFA acid purifiers provide reliable acid purification solutions for biomedical research.
Pharmaceutical industry: High-purity acid is a necessary raw material for the production of many drugs. The use of PFA acid purifiers can improve the purity and production efficiency of drugs and ensure the safety of patients' medication.
Electronic industry: High-purity acid is used to manufacture high-performance electronic components and materials. The application of PFA acid purifiers can improve the performance and stability of electronic products and promote the development of the electronic information industry.
New energy field: High-purity acid is used for battery manufacturing and electrochemical reactions. The application of PFA acid purifiers can improve the performance and life of batteries and promote the advancement of new energy technology.
In addition, PFA acid purifiers are also widely used in the chemical purification process in pesticides, dyes, food additives and other industries. It can effectively remove impurities and improve the purity of products, thereby meeting the needs of various industries for high-quality chemicals.
Our Advantages
We are a professional factory for utensils for more than 30 years, we are one of the most professional manufaturer for this line. we have our own technical team and can give you reasonable suggestion. OEM is welcomed.
Recently, a person named Susan pretended to be our company and stole our company picture, please be careful not to be deceived.
You can also visit our website through the following URL.
Company web:

Our Service
The same product quality, more favorable price, save your experiment cost!Professional manufacturer, bring you excellent quality experience!
Welcome to contact us freely if you are interested in our products. we will quote within 24 hours.
