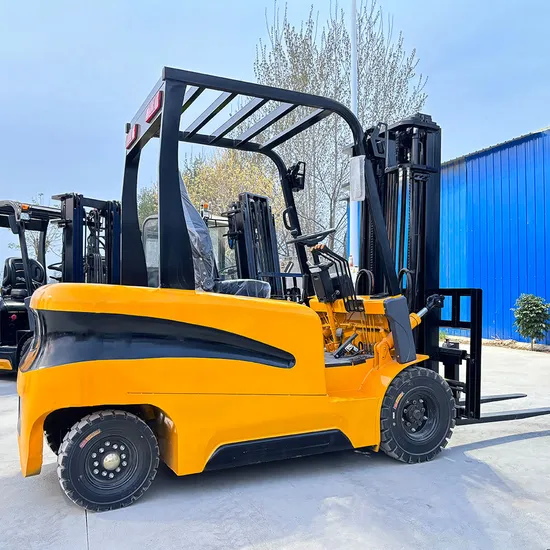

Factory price 1.5 ton 2 ton 2.5 ton 3 ton diesel forklift Prime Quality Custom EPA Eur5 Standard Reliable forklift makers
Advantages Ideal for Narrow Aisles: This compact forklift truck is designed to navigate confined spaces with ease, thanks to the small turning radius. Dual Drive: Equipped with an 80V 5.0*2kW dual drive system, allowing fast acceleration and easy long-distance transportation. Lithium-ion Battery: Features an 80V/205Ah Li-ion battery and 80V/35A integrated charger for zero maintenance and opportunity charging, ensuring high availability across multiple work shifts. Enhanced Visibility and Safety: The improved mast design offers optimal operator visibility, improving safety during operations. Product Parameters
| Deli Machinery Shandong Co.,Ltd |
| CPD25-C |
| Feature Characteristics | | unit | |
| Model | | | CPD25-C |
| Driving mode | | | seated |
| Rated capacity | Q | kg | 2500 |
| Load center distance | C | mm | 500 |
| Power mode | | | Lithium battery |
| Wheelbase | L1 | mm | 1600 |
| Tyre | |
| Tyre type | | | Solid tyre |
| Wheels number(front/rear) | | | 2/2 |
| Front track | W3 | mm | 1010 |
| Rear track | W2 | mm | 880 |
| Tyre(front) | | | 6.5-10 |
| Tyre(rear) | | | 16x6-8 |
| Fork size(LxWxT) | |
| Front overhang | L2 | mm | 410 |
| Tilt of the mast,front/rear | α/β | ° | 5/10 |
| Height,mast retraction | H1 | mm | 2030 |
| Free lift height | H3 | mm | 100 |
| Overall maximum lift height | H | mm | 3000 |
| Height,mast extended | H2 | mm | 4080 |
| Overhead guard height | H4 | mm | 2110 |
| Lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1040/100 |
| Fork size(LxWxT) | T*W*L4 | mm | 40*122*1070 |
| Truck body length(fork excluded) | L' | mm | 2330 |
| Truck body width | W1 | mm | 1160 |
| Turning radius | R | mm | 2370 |
| Groubd clearance under mast | H5 | mm | 88 |
Ground clearance at center of wheelbase(laden) | H6 | mm | 110 |
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | 3750 |
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | 3950 |
| Performance | |
| Travel speed,laden/unladen | | km/h | 9/10 |
| Lifting speed,laden/unladen | | mm/s | 210/250 |
| Lowering speed,laden/unladen | | mm/s | 450 |
| Maximum negoniable gradient,laden/unladen | | % | 15/20 |
| Weight | |
| Service mass(with battery) | | kg | 3150 |
| Battery voltage /nominal capacity | | V/Ah | 80V/150Ah |
| Electrical configuration | |
| Drive motor power-60 minutes | | kW | 9(permanent magnet synchronous) |
| Lift motor power-15 minutes | | kW | 7.5(permanent magnet synchronous) |
| Drive motor controlling mode | | | MOSFET/AC |
| Lifting motor controlling mode | | | MOSFET/AC |
| Service brake/parking brake | | | Hydraulic/Mechanial |
After Sales Service DFROK always treat after-sale service as important as product quality. DFORK gurantee our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. DFORK can support clients with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
FAQ 1. Why choose us?
As a manufacturer, DFORK machinery is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services. 2. What is the product range of our factory ? DFORK machinery is a large-scale machinery manufacturing enterprise primarily specializes in supplying forklift trucks ,wheel loaders,excavator and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? DFORK machinery can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
