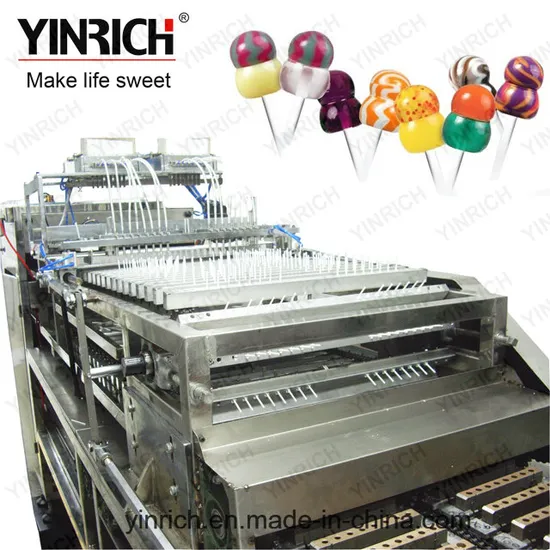

Deposited Lollipop Production Line for up and Down Double Layered Candy with Automatic Stick Insertion System (GDL150)

Product Description

The processing line is an advanced and continuous plant for making different sizes of flat-type lollipop candies(stick-add by manual for flat pops), also can make the two-color striped lollipops, and ball-type lollipop (stick-adding can be done automatically). It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
COMMODITY:
GDL150 deposited lollipop producing line
FEATURES:
1) PLC /computer process control available;
2) An LED touch panel for easy operating;
3) The production capacity from 150 kgs/h to 450kgs/h;
4) The main body is made of hygienic Stainless Steel
5) Optional (mass) flowing controlled by Frequency inverters;
6) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7) Dosing pumps for the automatic injection of colors, flavors and acids;
8) Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
9) "two-color striped" lollipop candies and etc. Can be made.
Remark:
1) All parts which contact the food are made of SUS304;
2) The frame and body cover are made of Stainless steel,
3) Servo motors: TECO;
4) Inverters:
5) Refrigerator :
6) PLC: SIEMENS or Mitsubishi
7) Dosing pump: RDOSE
8) Touch screen: EVIEW
9) Relay: SIEMENS or OMRON
samples of this processing line:

Model	GDL150	GDL300	GDL450	GDL600
Production capacity (kgs/h)	120kgs/h	250kgs/h	350kgs/h	480kgs/h
Weight of each candy	Max.16g	Max.16g	Max.16g	Max.16g
Rated depositing times	25n/min	25n/min	25n/min	25n/min
Steam-consumption	250kgs/h	300kgs/h	400kgs/h	450kgs/h
Steam-pressure	0.2~0.6mpa	0.2~0.6mpa	0.2~0.6mpa	0.2~0.6mpa
Compressed air- consumption	0.2 M³/min	0.25 M³/min	0.3 M³/min	0.35 M³/min
Compressed air- pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Conditions- temperature	20-25	20-25	20-25	20-25
Conditions- humidity	55%	55%	55%	55%
Total electric power	18kw/380V	18kw/380V	18kw/380V	18kw/380V
Length of plant	11m	13m	14m	17m

---
