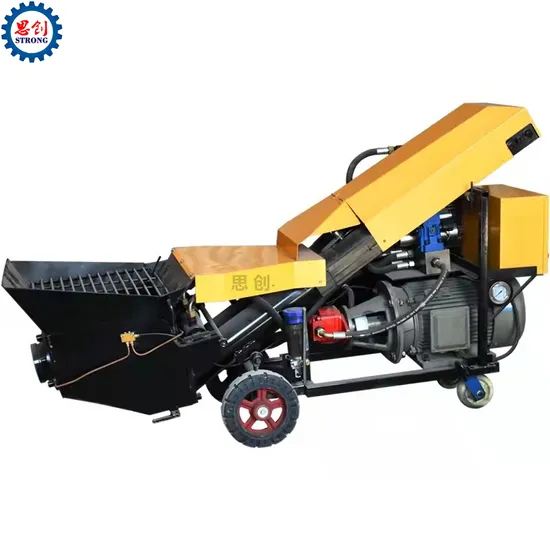

Concrete Pump Construction Site Cecondary Structure Pouring Pump

Product Description

The power system, hydraulic system and pumping system of the concrete delivery pump shall be reasonably matched to effectively give full play to the maximum power of the motor. The actual pumping efficiency of Mini Concrete Pump reaches more than 80% of the theoretical value. The configuration of the Electric Concrete Pump is more optimized. The imported hydraulic parts and electrical components are used to greatly improve the reliability of the equipment. The Hydraulic Concrete Pump adopts the unique distribution oil circuit buffer technology to ensure that the S pipe swings in place and prolong the service life of the S pipe. The application of high and low pressure switching of Concrete Mixer Pump simplifies the operation mode. The Concrete Mixer pump lubrication system adopts the forced filtration and pre compression dual pump energy-saving automatic centralized oil supply system, which can provide sufficient oil supply, better lubrication effect, and save consumption, reducing the consumption by more than 50% compared with the ordinary continuous oil injection. With the application of new wear-resistant materials and welding technology, the service life of common wearing parts of Trailer Concrete Pump is doubled. The power system of the Diesel Concrete Pump adopts the international brand hydraulic main pump, and the motor adopts the domestic famous brand to provide strong power. The hydraulic system of the Concrete Delivery Pump has a unique open hydraulic system and proprietary hydraulic buffer technology, which makes the system have less reversing impact and less heating. At the same time, the heavy-duty hydraulic main pump and hydraulic valve of international famous brand are selected. The displacement of the main pump is large and the diameter of the hydraulic valve is large, so as to ensure the safety and reliability of the concrete pump.

Model		SC-15A	SC-15B	S-20	SC-30	SC-40	SC-50	SC-60
Voltage (V)		380	380	380	380	380	380	380
Power (KW)		15	15	22	30	45	55	75
Efficiency (M³/H)		5-8	5-8	8-10	15	30	30-50	40-55
Conveying Distance (M) Aggregate Diameter(0.5-15MM)	Vertical	20	20	40	60	120	180	200
	Horizontal	60	60	120	150	300	500	550
Conveying Distance (M) Aggregate Diameter(10-20MM)	Vertical	15	15	20	30	50	80	100
	Horizontal	45	45	60	80	150	250	280
Conveying Distance (M) Aggregate Diameter(10-30MM)	Vertical				20	40	70	80
	Horizontal				60	120	200	230
Specification Of Transmission Pipeline (MM)		80	80	80	80	80/100	80/100/125	80/100/125
Hydraulic Cylinder Specification (MM)		120*600	100*500	120*650	140*750	160*1000	200*1000	200*1300
Outlet Diameter (MM)		125	100	100	125	125	180	180
Dimension (M)		1.7*0.6*1.1	1.7*0.7*1.1	3*1.2*1.5	3.4*1.3*1.6	4*1.5*1.6	4.2*1.6*1.7	4.3*1.6*1.7
Weight (KG)		650	900	1400	1700	2500	3000	3300

FAQ
1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.

2.Are you a trading company or a factory?
Xingtai Sichuang Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. we have specialized in we have specialized in crane&winch over 10 years, our high quality products were welcomed in many countries.
3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
5. What's the delivery time? Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity, it depends.
6. Questions before quotation?
Capacity? Lifting height? Voltage? Quantity? The more details the more accurate price quotation. Thank you.
7.what about our winches features?
1, Compact structure and reasonable design
2, Easy to install, operate and maintenance
3, Low noise and good working condition
4, Three-phase power supply, suitable for a wide range of applications
5, Simple structure, easy to identify the cause of the failure, easy to repair and maintain

---
