3 Layers Ultra-Thin Disposable Underpad Making Machine

Product Description

MACHINE DETAILS

Design Speed	700pcs/min
Stable Work Speed	500pcs/min
Power Supply	380V±5%,50HZ(3 phase,4lines,ground-in)
Installation	350KW(excluding air compressor,glue machine)
Power Used	400KW
Air Compressor	0.6-0.8Mpa
Product weight Tolerance	±5
Qualified Rate	≥97%(excluding glue,splice,raw jointer defectives)
Efficiency	≥85%
Machine Size(L*W*H)	35m*10m*5.5m
Working Size(L*W*H)	38m*12m*7m
Machine Weight	70Tons
Machine Color	Rich White(can be designed as customer's demand)
Machine Direction	Face the machine from left to right (can be designed as customer's demand)

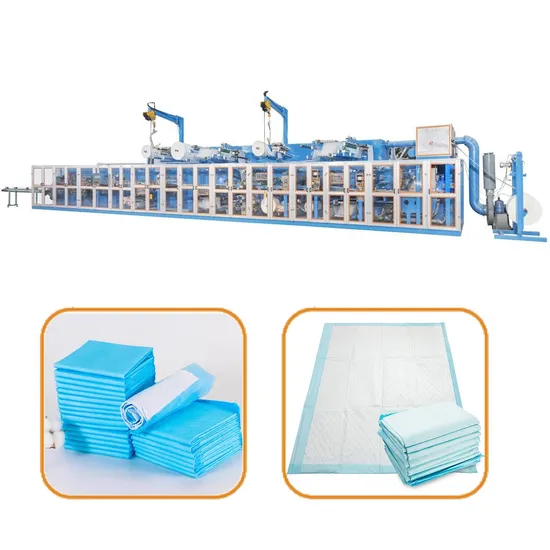

The high speed full automatic disposable underpad making machine incorporates cutting-edge technology and automation to produce high-quality underpads with precision and accuracy. Equipped with a program system, tension system, driven system, safety system, auto packing system, and web guiding system that are all servo-driven, the machine ensures each step of the production process is carried out smoothly and consistently. This results in uniform underpads that meet strict quality standards. The high speed full servo disposable underpad making machine offers versatility in terms of customization options. It adopts servo-driven, digital size changes to accommodate different sizes, shapes, and absorbency levels according to customer requirements. This machine comes in various sizes including 350 mm*450 mm, 450 mm*600 mm, 600 mm*600 mm,and 900mm*600mm. Additionally, it can be designed according to the specific needs of customers. This flexibility allows manufacturers to efficiently cater to a wide range of market demands.
Welcome to choose us and please feel free to contact us at your earliest convenience.
MACHINE FEATURES

MACHINE PRODUCTION WORKSHOP

FINISHED PRODUCTS
PET PAD//UNDERPAD
OUR ADVANTAGES

---
