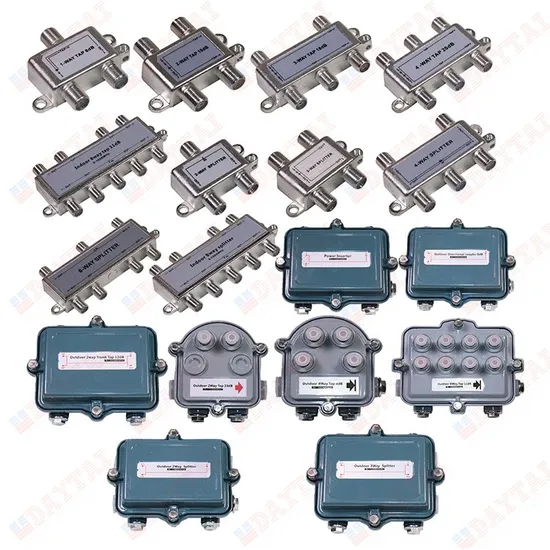

8 11 14 17 20 23 26 29 32 dB Sub Trunk 4 Way Outdoor CATV Splitter Tap off

Product Description

Description
4 Way CATV Sub-trunk tap,4dB,8dB,11dB,14dB,17dB,20dB,23dB,26dB,29dB,32dB,35dB,(it is optional),5-1000Mhz,RFI>110dB,in-out ports power pass 10A,in&out UNEF 5/8" port, tap ports F female port.
Performance

Tap Value	dB	8	11	14	17	20	23	26	29	32
Insertion Loss In-Out (-dB Max)	Frequency(MHz)
	5~10	-	3.2	1.6	1.0	0.6	0.5	0.5	0.4	0.4
	11~300	-	3.0	1.7	1.0	0.7	0.7	0.6	0.5	0.5
	301~400	-	3.2	1.9	1.3	0.9	0.9	0.8	0.5	0.5
	401~450	-	3.5	2.0	1.4	1.1	1.0	0.9	0.7	0.7
	451~600	-	3.7	2.2	1.5	1.2	1.1	1.0	0.8	0.8
	601~750	-	4.1	2.6	1.8	1.5	1.4	1.3	1.2	1.2
	751~900	-	4.5	3.0	2.2	1.7	1.7	1.5	1.4	1.4
	901~1000	-	4.9	3.5	2.5	2.0	2.0	1.8	1.7	1.6
Tap Loss In-To-Tap (±1.5dB)	5~10	8.0	11.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	11~750	8.0	11.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	751~900	8.0	11.5	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	901~1000	8.0	11.5	14.5	17.0	20.0	23.0	26.0	29.0	32.0
Tap-To-Tap Lsolation (dB Min)	5~10	20	20	20	20	20	20	20	20	20
	11~600	25	25	25	25	25	25	25	25	25
	601~750	23	23	23	23	23

Q1:What's the delivery time?
Re:The lead time is 15-20 days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample,if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payent method?
Re: We accpet T/T, Western Union, Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.

---
