US$9,500.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Semi-Automatic
Customized
Non-Customized
After-sales Service
Online Service
Transport Package
Container
Specification
3500*2400*1800
Trademark
INVECH MACHINERY
Production Capacity
20sets/Month
Product Description

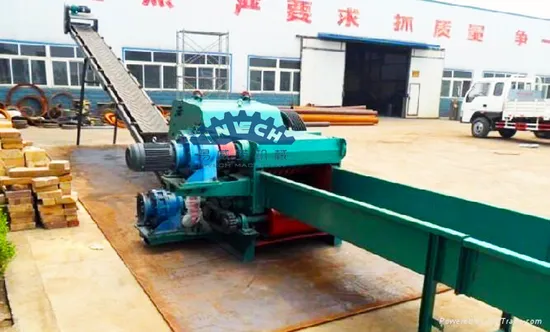

132KW Oil Palm EFB and Coconut Husk Shredder
Brief Introduction
This cutting machine can cut palm tree/barks/branches/kernel/empty fruit bunches into 8-90mm length prepared for biomass feedstock power plants, biomass fertilizers, paper making, pulping, briquetting, granulation etc.
However, raw materials such as coconut palm material and undecomposed coconut palm tree stumps, branches and filaments, which are too large or exceed 80% of the feed opening height are not suitable for this machine.
Features
A)There is no strict requirement for raw materials' moisture content.B) Durable blades are made from alloy tool steel. Low spare parts cost.C) Electric control panel: has been included and will be delivered together with fiber making machine.D) There are increase power type and internal-combustion engine type for each model to choose. Operating Principle
The cutting machine is fixed electric type, and it can be made with diesel engine or mobile trailer type.A) It is used to prepare materials for biomass feedstock power plants, biomass fertilizers, paper making, pulping, briquetting, granulation etc.
B) It mainly includes drum type flat feeding, inclined feeding, forced feeding or feeder feeding and conveying system, etc. It has upper discharge and lower discharge type (ie basic type and free basic type).
C) Raw materials such as coconut palm material and undecomposed coconut palm tree stumps, branches and filaments, which are too large or exceed 80% of the feed opening height are not suitable for this machine.
Parameters
| Model | Main Motor Power (kw) | Capacity (M³/t/h) | Weight (kg) | Size (mm) |
| BX-G2135D | 30-37 | 2-4/1-3 | 2400 | 1700*1700*1100 |
| BX-G3135D | 30-37 | 2-4/1-3 | 2700 | 2600*1700*1300 |
| BX-G215D | 37-45 | 5-8/3-5 | 3200 | 1800*1800*1150 |
| BX-G315D | 37-45 | 5-8/3-5 | 3600 | 2700*1800*1400 |
| BX-G216D | 45-55 | 8-12/6-8 | 4400 | 2100*2100*1200 |
| BX-G316D | 45-55 | 8-12/6-8 | 4700 | 2800*2100*1500 |
| BX-G316D+ | 75-90 | 10-15/8-10 | 5700 | 2900*2600*1600 |
| BX-G218D | 110-132 | 20-25/12-15 | 7200 | 2400*2400*1500 |
| BX-G318D | 110-132 | 20-25/12-15 | 8200 | 3500*2400*1800 |
| BX-G318D+ | 160-185 | 25-30/15-20 | 9800 | 3600*2800*1900 |
>>
