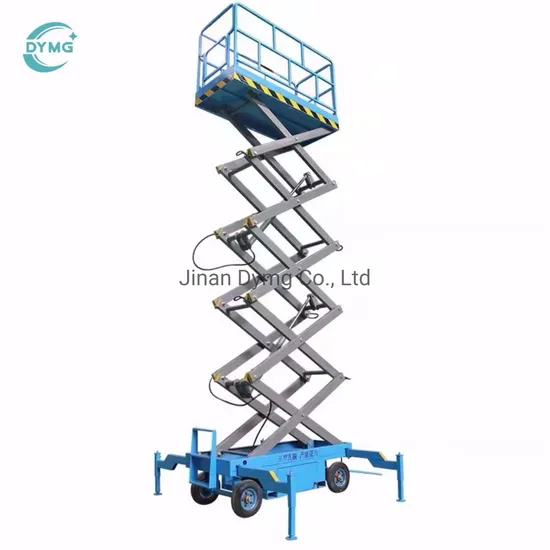

Dymg 4m 6m 8m 10m 12m 14m 16m 18m 20m Trailer Hydraulic Mobile Scissor Lift Use in Warehouse

Product Description

Product Description
Factory direct mobile scissor lift tables folding compact work lift platform.
Suitable for industrial and mining workshops, enterprises, stations, docks, buildings, exhibition halls,communication industries, municipal gardens and other high-altitude operations.Moving Scissor Lift Platform offer convenience at a low cost. The lightweight construction makes them easy to maneuver, use and transport, delivering excellent uptime.
Product Parameters

Model No.	Table Size (mm)	Loading Capacity (kg)	Platform Height (m)	Working Height (m)	Overall size (mm)	N.W.(kg)
DYMG04	2100*830	500	4	6	2250*950*1100	800
DYMG06	2100*830	500	6	8	2250*950*1200	880
DYMG07	2100*830	500	7	9	2250*950*1280	970
DYMG08	2100*930	500	8	10	2250*1060*1380	1050
DYMG09	2100*930	500	9	11	2250*1060*1500	1165
DYMG10	2100*1230	500	10	12	2250*1350*1530	1360
DYMG11	2100*1230	300	11	13	2250*1350*1650	1400
DYMG12	2550*1530	500	12	14	2796*1670*1750	2260
DYMG14	2812*1530	500	14	16	3067*1730*1810	2400
DYMG16	2812*1600	300	16	18	3067*1800*2080	3500
DYMG18	3070*1600	300	18	20	3321*1810*2080	3900

Detailed Photos
Packaging & Shipping

Equipment Real Shots

Main Features
1.Strong basket fixed on the platform to ensure safety of operator.
2. Plastic spraying paint to make rust protection better.
3.Mobile scissor lift platform adopts high-strength manganese steel structure, much stronger material Q235. High stability scissor aerial work platform, four wheels are easy to move.
4. The conventional configuration is AC power, DC battery or AC+DC are available.
5. Overloading of the lift provided to prevent hydraulic line rupture safety.
6. Emergency lowering protection valve device in case of power outage.
7.The mile meter can clearly see the speed per kilometer, And the rotary switch of AC And DC can be switched by one button. The Emergency Stop Device can ensure maximum construction safety.
8. Double layer steel mesh rubber tube prevent breakage and breakage strong and sturdy.
9. There are 4 safety outrigger on the equipment, when the lift working in height,open them to make the lift safe, close them when the lift platform down.
10. Well designed manual trailing bar, it is convenient to move the lift by well designed manual trailing bar.
11. To ensure safety before lifting up, when the bubble of the level indicator in the middle, it means ok to lift after the outriggers being opened.
FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 24 months.
4.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.

---
