US$35,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Power Source
Hydraulic Turbine
Portable Harvester Type
Side Hanging Type
Application Field
Agriculture
Warranty
One Year or 1500 Working Hours
Engine Model
4BTA3.9-C130
Dimension
4900*2600*3100mm
Max Grapple Height
5400mm
Max Dumping Height
5300mm
Grab Capacity
1200-1300kg
Origin
Qingzhou, Shandong, China
Production Capacity
100 Sets for One Year

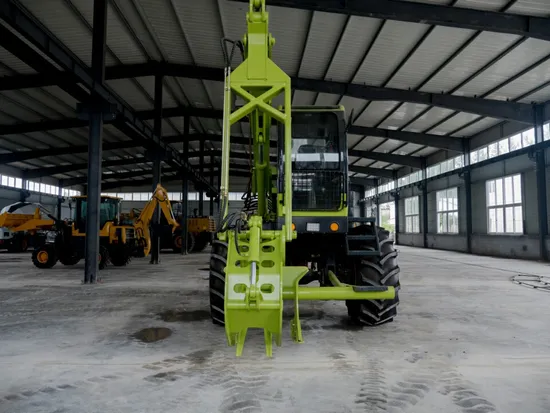

Product Description
Brife introduction
1. Engine: Adopt Cummins diesel engine, excellent performance, low fuel consumption,
low noise, large power reserves, long stroke
2. Oil tube: Choose high-pressure rubber pipe, which suits all bad working environment,
antiquake, anti-loose, stand fire.
3. Hydraulic working sustem: taking advanced of foreign advanced technology, it can
reduce wobble with buffer function, and the machine service life can be extended.
4. Surface treatment: derusting with large size shot blast machine, to change welding stress.
5. Surface spray coating: anti ruesting painting
6. Prepositive push piller, convenient for collection.
7. Oil return filter is set in oil return pipeline to guarantee the cleaness of hydraulic oil
Basic specifications
| Max grapple height | 5400mm |
| Max dumping height | 5300mm |
| Max grapple radius | 5300mm |
| Engine model | 4BTA3.9-C130 |
| Rated power | 130HP |
| Engine brand | Cummins |
| Total machine weight | 7600kg |
| Grab capacity | 1200-1300kg |
| Working efficiency | 3000kg/min |
| Working times | 3/min |
| Hydraulic system working pressure | 20Mpa |
| Maxing flux | 63ml/r/63ml/r |
| Slope | 25% |
| Working speed | ≤30km/h |
| Boom rotation angle | 110° |
| Overall dimension (L*W*H) | 4900*2600*3100mm |
| Min. ground clearance | 580mm |
| Wheel base | 2000mm |
| Tires | 23.1-26 |
| Fuel consumption | ≤225g/kw.h |
>>
