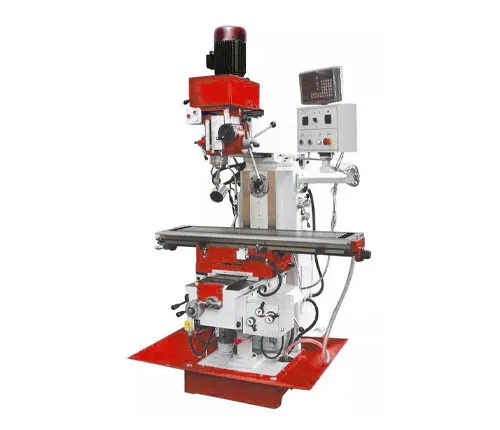

China Factory Good Quality Direct Sales Milling Drilling Machine Zx6350zs Drilling Milling Machines

Product Description

1. General datas	ZX6350ZS
Table angle	± 45°
Worktable dimensions	1370 x 320 mm
Longitudinal travel	800 mm
	1000 mm
Transversal travel	330 mm
Vertical travel	350 mm
Max load over worktable	300 kg
2. Vertical spindle
Spindle taper	ISO 40
Spindle speed number	8
Spindle speed range	108 ~ 2400 rpm
Spindle travel	127 mm
Distance between spindle and surface of column	780 mm
Distance between spindle and surface table	180 ~ 580 mm
Headstock swivel angle	± 90º
Torpedo travel curse	460mm
With dovetail guide width	256mm
3. Horizontal spindle
Spindle taper	ISO 40
Spindle speed number	12
Spindle speed range	48 ~ 1560 rpm
Distance between spindle and surface table	20 ~ 410 mm
4. Motors
Vertical motor power	3 hp
Horizontal motor power	3 hp
Feed motor power (longitudinal and transversal)	0.75 hp
Feed motor power (vertical)	1 hp
5. Machine dimensions
Length	1710 mm
Width	1720 mm
Height	2330 mm
Net weight	1700 kg
6. Diameter Screw
X Axis	32MM
Y Axis	32MM
Z Axis	44MM

ZX6350ZS Drilling and Milling Machine OEM FEATURES: Conventional milling machine without clp or cnc control, with transmission by gears lubricated in oil, vertical head with 8 variable speeds changed by positioning levers rotations between 108 to 2400rpm, horizontal spindle with transmission by gears lubricated in oil with 12 variable speeds changed by positioning of levers with rotations between 48 to 1560rpm, both with ISO-40 cone, TABLE OR SWIVEL TABLE with dimensions 320mm x 1370mm and NR12 protection fairing with interlock key, Axes stroke X 1000mm, Y 330mm, Z 350mm, Table spindle X diameter 32mm pitch 6mm, Y spindle of the table diameter 32mm pitch 6mm, Z spindle of the table diameter 44mm pitch 6mm, with electric motor drive, torpedo with 460mm stroke, vertical motor power 2.2kw, horizontal motor power 2.2kw, vertical column with square bus 260mm width of guide. Electrical controls installed on a panel with an articulated arm on the right side of the machine. SWIVEL Table with lateral rotation of 45 degrees to the right and left.

---
