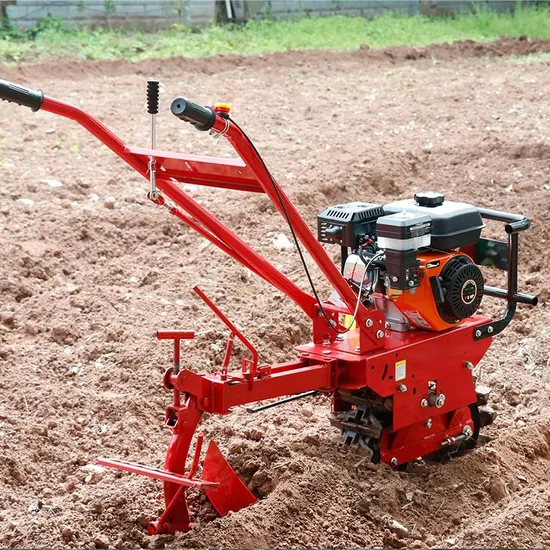

Factory Price Chain Trak Power Tiller 170f/P Engine Agriculture Farm Machinery Garden Tillers

Product Description

Product Description
1.This product belongs to the field management type of agricultural machinery, mainly used for furrowing, soil cultivation, weeding, and other farming operations.
2.This model adopts a 170F gasoline engine, and the entire machine adopts a chain track drive mode. It has the advantages of compact structure, lightweight quality, simple and flexible operation, strong driving force, strong chain track grip, and is not prone to slipping and sinking.
3.The clutch mode adopts an automatic centrifugal type, which is widely used in areas such as orchards and vegetable fields in plains and hilly areas.
4.The handlebar can be rotated up and down, and can be used for forward, reverse, and high and low speed changes.

Product Name	Field management cultivator
Product No.	BSG3TGQ-4.2F
Engine Model	170F/P
Engine Type	Single cylinder, 4-stroke, forced air-cooled, 25º inclined, camshaft output
Displacement	212cc
Starting Mode	Hand recoil start
Engine Volume	0.6L
Ignition Mode	No contact, transistor T.C.L
Rated Power	4.2kw
Rated Speed	3600r/min
Main Clutch type	Automatic centrifugal type
Ditching Width	200mm
Ditching Depth	≥150mm
Ditching Speed	>1m/s
Ditching and Soil Cultivation Device Type	Triangular plowshare type(plowshare type)
Weeding Width	500mm
Net Weight	64Kg
Dimensions	1400*600*1130mm
Transmission	Belt+Gear
Connection Mode	Triangle belt
Vertical Adjustment Range of Handlebar	60°
Walking Speed	Fast 9.6km/h,slow 5km/h
Fuel Consumption Per Unit Operating Area	≤35kg/hm2
Fuel Tank Capacity()	3.6L
Soil Raising Speed	>1m/s
Soil Work Width	200mm
Weeding DeviceType	Wing shovel type (weed hoe)
Handlebar	Adjustable up and down, and operable gear shifting on the handlebar
Bumper	Black spray plastic, fully protective
Transmission Box Type	Aluminum alloy die cast transmission
Support Method	Side feet
Extinguishing Mode	Knob type flameout switch
Chain Rail	Width: 150mm length:580mm
Other Specification	Oil bath air filter, ф 20 Flat key shaft output
Optional Configuration	Color:Orange, Black Decal Engine:Standard series, X series
Packing Box	Plywood box Handlebar, blades separately packed Body packaging dimensions: 700*405*520mm

FAQ
1. who are we?
We are based in Chongqing, China, start from 2015,sell to Eastern Europe(30.00%),Domestic Market(20.00%),Southeast Asia(12.00%),Africa(12.00%),South America(10.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(2.50%),South Asia(2.50%),Eastern Asia(1.00%),Western Europe(1.00%). There are total about 501-1000 people in our office.
2. how can we guarantee the quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
The gasoline engine, Gasoline water pump, Gasoline Power tiller, Diesel Power Tiller, Gasoline Generator, ATV with trailer, Portable POWER Station, Agricultural sprayer drone
4. why should you buy from us, not from other suppliers?
20 years' focusing makes AEROBS being leading well-known brand. We have a huge factory and our own technical research center. Not only manufacturing but also creation will enable us to do more and more for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese,Russian, French, Spanish

---
